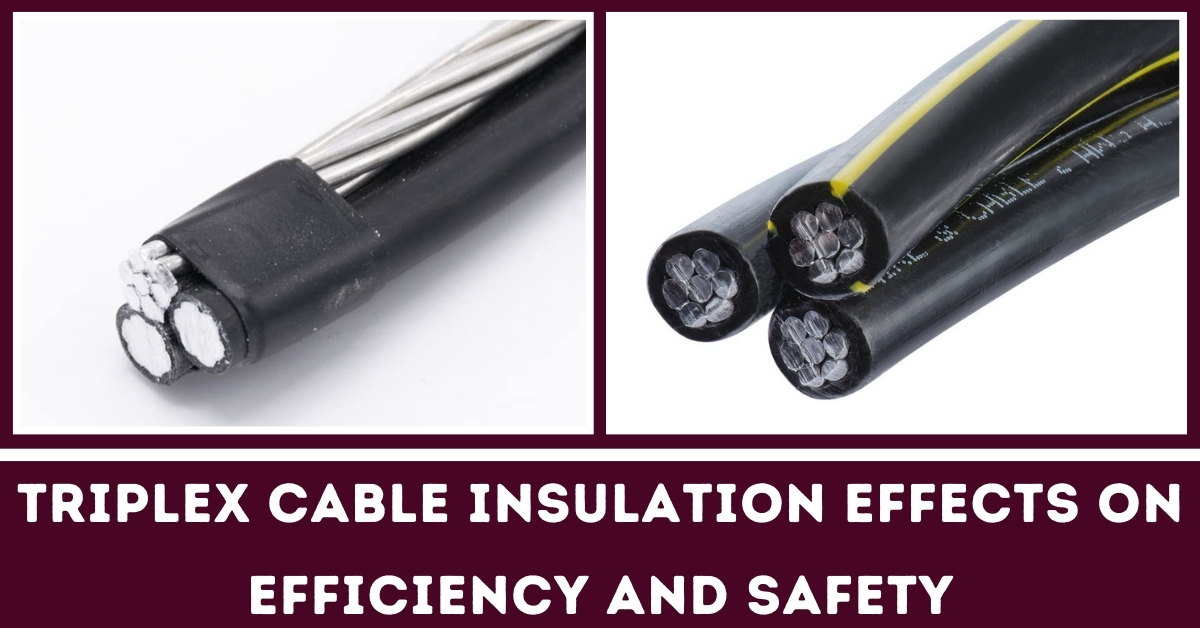

Triplex cables are a crucial component in electrical power distribution, commonly used in both overhead and underground applications.
These cables consist of three conductors twisted together two insulated phase conductors and one bare neutral conductor.
While the conductors play a vital role in transmitting electricity, the insulation around them significantly impacts both efficiency and safety.
The quality and type of insulation affect power loss, thermal performance, and overall electrical resistance. Poor insulation can lead to energy dissipation, overheating, and premature cable failure.
On the other hand, high-performance insulation enhances efficiency by minimizing dielectric losses and improving current-carrying capacity.
From a safety perspective, insulation prevents short circuits, electrical faults, and fire hazards. It also protects cables from environmental threats like moisture, UV radiation, and chemical exposure, ensuring long-term reliability.
Choosing the right insulation material whether XLPE, PVC, EPR, or HDPE can make a substantial difference in cable performance.
This article explores the effects of triplex cable insulation on efficiency and safety, backed by real-world data and industry insights.
Whether you’re an engineer, contractor, or utility professional, understanding these insulation factors will help optimize cable selection and enhance electrical system performance.
The type of insulation used in triplex cables directly impacts electrical efficiency by influencing power loss, thermal performance, and current-carrying capacity.
High-quality insulation reduces energy dissipation, minimizes resistance, and enhances overall system reliability.
Impact on Electrical Resistance and Power Loss
The insulation material used in triplex cables plays a crucial role in minimizing electrical resistance and reducing power loss.
Electrical resistance in a cable leads to energy dissipation in the form of heat, which can lower the overall efficiency of power transmission.
Insulation helps control the dielectric loss factor, ensuring that more energy reaches the intended destination without excessive heat buildup.
Different insulation materials exhibit varying levels of dielectric loss. For instance, XLPE (Cross-Linked Polyethylene) has a lower dielectric loss factor (0.0004) compared to PVC (0.01), making it a superior choice for high-efficiency power transmission.
Lower dielectric losses mean reduced energy waste, leading to better overall system performance. Additionally, lower power loss translates to cost savings in electricity transmission over long distances.
A well-insulated triplex cable maintains a stable electrical flow, preventing unwanted power leaks. Poor insulation, on the other hand, increases energy dissipation, forcing electrical systems to work harder and consume more power.
This is especially critical in high-voltage applications, where even minor energy losses can significantly impact operational efficiency.
Choosing an insulation material with a low loss factor ensures better energy conservation and system reliability.
Thermal Performance and Load Capacity
Heat management is a critical factor in cable efficiency, and insulation directly affects the thermal performance of triplex cables.
When electricity flows through a conductor, it generates heat due to resistance. If this heat is not properly managed, it can degrade the insulation material, reduce the lifespan of the cable, and lead to power loss.
Different insulation materials have varying temperature ratings, impacting their ability to handle electrical loads.
XLPE insulation can withstand continuous operating temperatures of up to 90°C and short-term exposure to 250°C in fault conditions, while PVC insulation is limited to 70°C under normal conditions and around 160°C in short circuits.
The higher the thermal resistance of an insulation material, the better it can handle increased electrical loads without compromising performance.
A cable with high heat-resistant insulation allows for a higher current-carrying capacity, improving efficiency in power distribution networks.
On the other hand, insulation with poor thermal properties can lead to overheating, which not only wastes energy but also increases the risk of insulation failure.
Selecting an insulation material that efficiently manages heat ensures a stable and energy-efficient electrical transmission system.
Moisture infiltration is one of the most common causes of insulation failure in electrical cables.
When water enters the cable structure, it affects the insulation’s dielectric properties, leading to increased leakage currents, reduced efficiency, and eventual breakdown.
Insulation materials vary in their resistance to moisture, which is a critical factor in determining long-term cable performance.
XLPE insulation is highly resistant to water absorption, with an absorption rate below 0.01%, while PVC insulation has a higher absorption rate of around 0.5%.
This means that in environments with high humidity or frequent water exposure, XLPE provides better long-term reliability.
For underground and overhead installations where exposure to rain, snow, or high humidity is common, selecting an insulation material with strong water resistance is essential.
Ethylene Propylene Rubber (EPR) and High-Density Polyethylene (HDPE) also offer excellent moisture resistance, making them suitable for wet conditions.
Additionally, moisture ingress can lead to the formation of water trees, a phenomenon that degrades insulation over time. This effect is especially prevalent in lower-quality insulation materials.
Using a high-quality insulation material with moisture-resistant properties minimizes these risks and ensures that the cable maintains its electrical performance for an extended period.
One of the most significant safety concerns in electrical cable installations is fire resistance. If insulation materials are not flame-retardant, they can contribute to fire hazards, spreading flames along the cable route and releasing toxic fumes.
Different insulation materials offer varying levels of fire resistance. Low Smoke Zero Halogen (LSZH) PVC insulation is specifically designed to minimize flame propagation and reduce toxic smoke emissions, making it a preferred choice in enclosed spaces like buildings, tunnels, and public transport systems.
XLPE insulation also has good fire resistance but may release hazardous gases when burned, making it less suitable for areas with strict fire safety regulations.
Flammability ratings help determine the safety of insulation materials. PVC has a high flammability rating and produces toxic smoke, whereas XLPE and EPR have moderate flame resistance, and LSZH insulation has the lowest flammability rating. When selecting an insulation material, it is essential to consider the application environment.
In applications where fire safety is a priority, using flame-retardant insulation materials can prevent fire-related damage, reduce the risk of equipment failure, and protect lives.
Compliance with fire safety standards ensures that electrical installations remain safe and reliable, even in extreme conditions.
Triplex cables used in outdoor and industrial environments are often subjected to mechanical stress, UV exposure, chemical exposure, and Triplex cable extreme weather conditions.
Insulation materials must be durable enough to withstand these factors without degrading over time.
Mechanical Strength and Abrasion Resistance
Cables installed in areas with high mechanical stress need insulation that resists wear and tear. HDPE and XLPE offer superior abrasion resistance compared to PVC, making them more suitable for rugged environments.
In contrast, PVC insulation is more flexible but less durable under mechanical stress.
UV and Weather Resistance
For overhead power lines, UV resistance is crucial. Prolonged exposure to sunlight can cause insulation to become brittle and crack over time.
HDPE and XLPE have excellent UV resistance, whereas PVC tends to degrade faster under prolonged sunlight exposure. Choosing UV-resistant insulation ensures longer cable life and reduced maintenance costs.
Chemical Resistance
Industrial environments may expose cables to chemicals, oils, and other corrosive substances. EPR insulation provides excellent resistance to chemicals, making it ideal for chemical plants, refineries, and marine environments.
Selecting an insulation material that resists chemical degradation ensures reliability and longevity.
Proper insulation selection prevents costly repairs and reduces downtime caused by insulation failure due to physical or environmental damage.
The lifespan of a cable is directly influenced by the insulation material used. Over time, insulation undergoes thermal, electrical, and mechanical aging, which degrades its performance and increases the risk of failure.
Thermal Aging
Repeated exposure to high temperatures accelerates insulation degradation. XLPE insulation has a lifespan of over 40 years due to its high thermal stability, while PVC insulation typically lasts 20-30 years.
Electrical Aging
High-voltage stress can cause insulation breakdown over time. XLPE and EPR insulation offer higher dielectric strength compared to PVC, making them better choices for long-term electrical reliability.
Mechanical and Environmental Aging
Cables exposed to outdoor environments experience wear due to mechanical stress and environmental conditions. HDPE and EPR offer better mechanical durability, helping cables last longer in harsh environments.
Choosing an insulation material with high resistance to aging factors ensures longer cable life, reducing the need for frequent replacements and maintenance.
Selecting the right insulation material for triplex cables depends on several factors, including voltage requirements, environmental conditions, fire safety regulations, and cost considerations.
1. Higher voltage applications require insulation with superior dielectric strength. XLPE is a preferred choice for high-voltage applications.
2. Outdoor cables should have UV-resistant insulation like HDPE or XLPE, while underground cables require moisture-resistant materials like EPR or XLPE.
3. XLPE and EPR offer better thermal performance, making them suitable for high-temperature environments.
4. In buildings and confined spaces, LSZH insulation is the best option due to its low smoke and flame-retardant properties.
5. PVC is more affordable but has a shorter lifespan, while XLPE provides a balance between cost and long-term reliability.
By evaluating these factors, engineers and utility professionals can choose the best insulation material to optimize efficiency, enhance safety, and maximize the lifespan of triplex cables.
Proper insulation selection ensures reliable electrical performance while minimizing maintenance and operational costs.
The insulation of triplex cables plays a crucial role in both efficiency and safety. High-quality insulation minimizes power loss by reducing electrical resistance and dielectric losses, ensuring more efficient energy transmission.
It also enhances thermal performance, allowing cables to handle higher loads without overheating, which extends their lifespan and reduces maintenance costs.
From a safety standpoint, insulation protects against moisture, fire hazards, and physical damage. Moisture-resistant materials like XLPE and EPR prevent electrical failures, while fire-retardant options such as LSZH reduce the risk of fire propagation.
Mechanical strength and UV resistance are also critical, especially for outdoor and industrial applications where cables are exposed to harsh environmental conditions.
Selecting the right insulation material depends on factors such as voltage requirements, environmental exposure, and safety regulations.
XLPE is often the preferred choice due to its balance of efficiency, durability, and cost-effectiveness. However, applications with specific needs, such as chemical resistance or fire safety, may require specialized insulation materials.
By understanding the effects of insulation on triplex cables, electrical engineers, contractors, and utility providers can make informed decisions that enhance efficiency, ensure long-term safety, and optimize performance in power distribution systems.
