When it comes to residential or utility-scale electrical service, Triplex cable installation is a critical task that demands accuracy, compliance with code, and the right tools.
Triplex cables are widely used for delivering power from the utility pole to the home, especially in overhead and some underground service drop applications.
Their lightweight aluminum construction, combined with a durable configuration of two insulated conductors and a bare neutral, makes them a cost-effective and reliable choice for many installations.
However, installing triplex cable isn’t just about pulling wire from point A to point B. It involves careful planning, understanding of load requirements, code compliance, and proper use of specialized tools.
Mistakes like improper grounding, incorrect torque on connections, or inadequate clearance can result in system failures or safety hazards.
Whether you’re a contractor, technician, or an informed homeowner preparing for a service upgrade, knowing the exact steps and equipment needed for a proper triplex installation is essential.
From measuring and routing the cable to making safe, code-compliant connections, every part of the process needs to be handled with attention to detail.

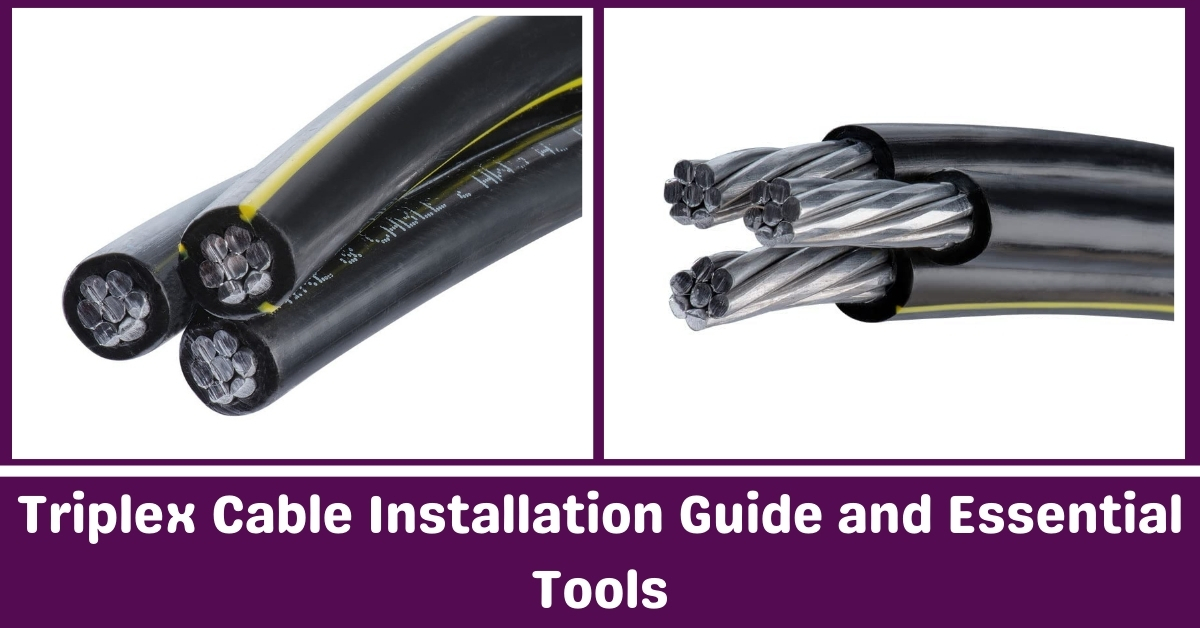

Triplex Cable Installation Guide and Essential Tools
In this guide, we will explain everything you need to know about Triplex cable installation and the essential tools required to do the job right.
Planning Your Triplex Cable Installation
Before any physical work begins, planning is essential. The first step is to determine the type, size, and length of the triplex cable required for your project.
Triplex cable typically includes two insulated phase conductors and one bare or insulated neutral, usually made from aluminum.
The size of the conductors (e.g., 1/0 AWG, 2/0 AWG) depends on the ampacity required, which is influenced by the total electrical load of the system and the distance from the utility connection to the service panel.
Local electrical codes and utility company standards must be followed.
Contact your local utility provider to confirm regulations regarding overhead clearances, pole height, anchoring methods, and grounding procedures. You may need permits and inspections before installation begins.
Next, map out the cable run. For overhead installations, ensure there is enough vertical and horizontal clearance from buildings, trees, and other obstructions.
For underground, plan the trench path and depth, ensuring it won’t interfere with other buried services like gas or water lines. Mark your cable path clearly using marking paint or flags.
Planning also includes safety measures. All workers must be aware of the risks associated with working near electrical lines.
Lockout-tagout procedures, personal protective equipment (PPE), and working during daylight hours are part of a safe installation plan.
Measuring and Cutting the Cable
Once your layout is planned, the next step is to measure and cut the triplex cable accurately.
Use a measuring tape or distance wheel to determine the exact cable length from the utility pole or service drop point to the main panel or meter base.
Add extra length (typically 5-10%) to allow for sag in overhead installations, bends, and secure connections.
Use a cable cutter rated for aluminum conductors to cut the triplex cable cleanly. Avoid using tools not designed for electrical cable, as improper cutting can deform the wire ends and compromise future terminations.
Make sure the ends are clean, and the individual conductors are not nicked or damaged. Inspect the cable after cutting to ensure it’s in good condition.
If installing multiple service drops or running cable to a sub-panel, repeat the measuring and cutting process for each run. Label each cut section if needed to avoid confusion during installation.
Assembling the Tools
Having the correct tools before installation begins ensures efficiency and safety. For triplex cable installation, here’s a list of essential tools:
1. Cable Cutter: For cutting aluminum triplex cable cleanly and safely.
2. Wire Stripper: For removing insulation on the phase conductors.
3. Torque Wrench or Torque Screwdriver: To apply proper torque on lugs and terminals.
4. Fish Tape or Cable Puller: Useful for underground conduit runs.
5. Come-Along Grip: For tensioning the cable during overhead installation.
6. Hoist or Pulley System: Helps lift and hold the cable into position.
7. Lineman’s Pliers and Crimpers: For securing and crimping connections.
8. Safety Gear: Gloves, hard hat, safety glasses, and insulated tools.
9. Drill and Fasteners: For mounting weatherheads or junction boxes.
10. Level and Measuring Tape: For layout and mounting alignment.
Organize the tools in a mobile toolbox or workbench. Keeping tools nearby reduces downtime and allows workers to maintain focus on the job.
Installing the Triplex Cable (Overhead)
For overhead installation, begin by securing the service entrance hardware such as a weatherhead or conduit mast at the building. Attach an approved anchor point or eye bolt to support the incoming triplex cable at the proper height and tension.
Install a dead-end clamp or wedge clamp at the service pole or utility structure to secure the cable.
Pull the triplex cable using a come-along grip, making sure there is adequate sag as per NEC or utility guidelines typically 12 to 18 inches between poles depending on span length.
Avoid overtightening as it can damage the cable or stress connections.
Once the cable is positioned, secure it to the weatherhead using a second clamp. Strip the phase conductors using an appropriate wire stripper, taking care not to damage the aluminum strands.
Insert the stripped conductors into service lugs or meter socket terminals, following torque specs provided by the manufacturer.
The neutral conductor, often bare, must be bonded to the grounding electrode system using an approved clamp.
Use anti-oxidant compound on aluminum conductor terminations to prevent corrosion. Complete all terminations before calling for an inspection.
Underground Triplex Installation
Underground triplex installations require more groundwork but offer better protection against weather and vandalism. First, dig a trench that complies with NEC code usually a minimum of 24 inches deep for direct burial.
If conduit is used (e.g., PVC or HDPE), the trench depth can sometimes be reduced based on local code.
Lay a bed of clean sand or fine soil at the bottom of the trench to cushion the cable. If running cable inside conduit, pull the triplex cable using fish tape or a pull string.
Ensure no sharp bends are present, and maintain a minimum bend radius of 8 to 10 times the cable diameter to avoid stress.
Place warning tape about 12 inches above the cable to alert future diggers. Once the cable is in place, backfill with more clean soil before replacing the original ground.
Avoid using rocks or construction debris that can damage the cable over time.
At each end, extend the cable through a conduit riser or terminal box. Prepare the cable ends by stripping and terminating in the same way as overhead installation. Ensure the neutral is properly grounded and bonded.
Making the Final Connections
With the cable installed, it’s time to make all final electrical connections. This includes terminating both hot (phase) conductors and the neutral conductor at the meter base or main service panel.
Before connecting, confirm there is no voltage present using a non-contact voltage tester or multimeter.
Strip only the required length of insulation. Over-stripping can leave too much conductor exposed, increasing the risk of shorts or arcing. Apply anti-oxidant paste to all aluminum connections before inserting into terminals.
Use a torque wrench to tighten each connection to the specified value. Under- or over-tightening can lead to loose connections, which are a fire hazard.
Connect the neutral conductor to the neutral bar and ensure it’s bonded to the grounding electrode conductor (GEC) and ground rod. Verify that grounding and bonding paths are continuous and meet code requirements.
If applicable, connect the conductors to a disconnect switch or main breaker panel, and install a service entrance cap or junction box cover.
Secure all cables with straps or clamps to prevent movement. Double-check every connection before proceeding to testing.
Troubleshooting and Testing
Before the utility connects power, it’s essential to test the installation to ensure it’s safe and fully functional. Use a continuity tester or multimeter to check for:
1. Continuity in all conductors from source to load.
2. No short circuits between any of the conductors or to ground.
3. Proper grounding with resistance to ground below acceptable limits (typically under 25 ohms).
Inspect all clamps, connectors, and entry points to confirm they’re secure and weather-tight. Re-check torque values on all terminals. If connections are loose, re-tighten to manufacturer specs.
If the system includes a meter base, have it inspected by the local utility or authority having jurisdiction (AHJ). Only after a successful inspection should the utility energize the line.
After power is connected, use a voltage tester to confirm 120/240V service is available at the panel. Turn on breakers and test outlets or fixtures for functionality.
Monitor for any signs of heat or sparking, which may indicate a poor connection.
Conclusion
Installing triplex cable whether for residential service drops or light commercial use requires a methodical approach grounded in safety, precision, and code compliance.
From initial planning and measuring to the actual overhead or underground installation, each phase must be carried out with care and accuracy.
Using the correct tools and following proper procedures is essential to ensure that conductors are securely connected, properly grounded, and capable of delivering stable electrical power.
Skipping steps or using the wrong equipment can lead to dangerous faults, voltage drops, or even fire hazards. Therefore, understanding cable specifications, local code requirements, and safe installation techniques is not optional it’s mandatory.
Whether you’re working with an overhead span from a utility pole or burying cable underground for a clean, weather-protected system, the principles remain the same: measure precisely, connect securely, and test thoroughly.
By following this guide, you can achieve a professional-grade triplex cable installation that meets both functional and regulatory standards.
Take your time, double-check your work, and always prioritize safety and reliability. A well-installed triplex system will serve efficiently for decades when done right.
