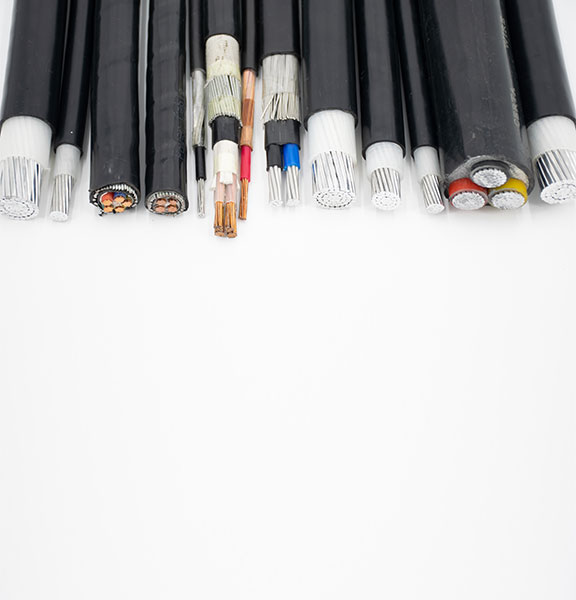

LV XLPE Power Cable

XLPE Cable

Low Voltage XLPE Cable (XLPE Power Cable) is used to transmit and distribute power in power transmission and distribution systems of 1kV or lower. This type of XLPE insulated cable is widely recognized for its excellent electrical performance, thermal stability, and long service life compared to traditional insulation systems. It is commonly used as an Underground Cable in modern power networks due to its high safety and durability in harsh environments.

It is generally applied in fields including power utilities, construction, mining, metallurgy, petrochemical industry, and communication systems, completely replacing oil-immersed paper insulated power cables. The superior insulation properties of XLPE Power Cable make it ideal for efficient and reliable energy transmission in both industrial and infrastructure applications.

SPECIFICATIONS

CONSTRUCTION

PARAMETER

INQUIRY

SPECIFICATIONS

Property:

1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.

2. In short circuit (Max long term is no more than 5 seconds), the highest temperature for conductor is no more than 250 degrees.

3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.

4. Excellent electrical performance, resistance to chemical corrosion.

5. They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable..

CONSTRUCTION

All type of Low Voltage XLPE Insulated PVC Sheathed Power Cable.
(Armor material: SWA=steel wire armor, STA=steel tape armor, AWA=aluminum wire armor)

(1). 0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;

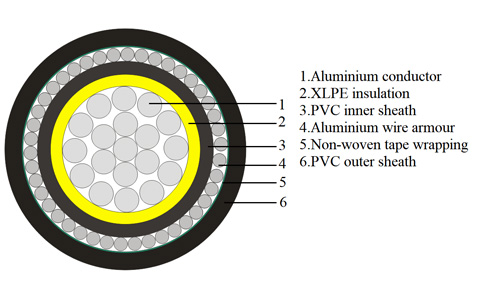

0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable;

(2). 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(3). 0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;

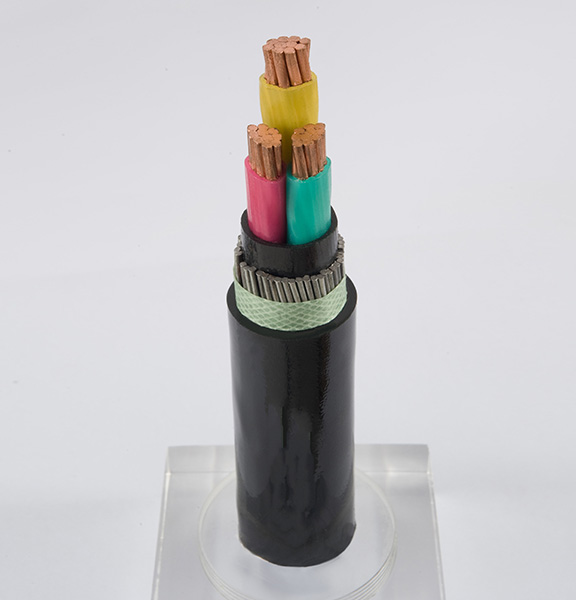

0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(4). 0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3 +1Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3 +1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(5). 0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(6). 0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV , 4+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(7). 0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(8). 0.6/ 1kV ,3+2 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV , 3C+2 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;
