LV PVC Power Cable
Underground Power Cable – Low Voltage PVC Power Cable
Low Voltage PVC Insulated and Sheathed Power Cable is designed for power transmission and distribution lines operating at AC 50Hz with a rated voltage of up to 1kV. As a reliable Underground Power Cable, it is widely used in utility networks, industrial facilities, commercial buildings, and infrastructure projects. The cable offers stable electrical performance, advanced manufacturing technology, excellent flexibility, and easy installation and maintenance. Manufactured from high-quality materials, it provides dependable insulation, mechanical protection, and long service life while maintaining a cost-effective solution for low-voltage power distribution applications.
Share:
SPECIFICATIONS
Property:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
Underground Power Cable CONSTRUCTION
CONSTRUCTION
All type of Low Voltage PVC Insulated PVC Sheathed Power Cable.
(Armor material: SWA=steel wire armor, STA=steel tape armor, AWA=aluminum wire armor)

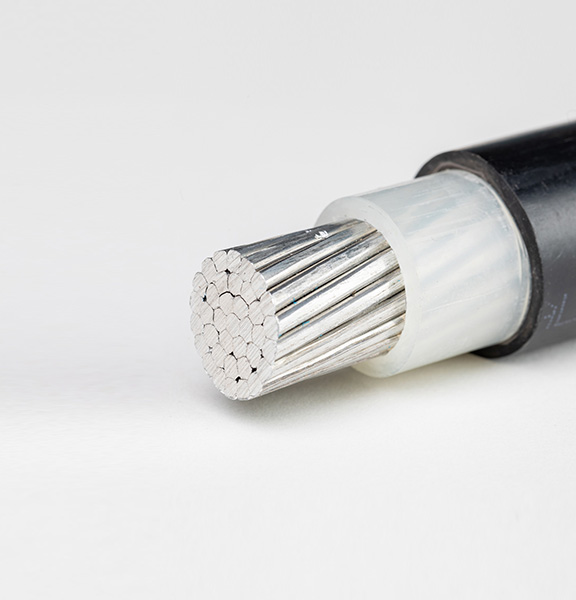

(1). 0.6/1kV, Single Core, Cu or Al/PVC/PVC Power Cable;

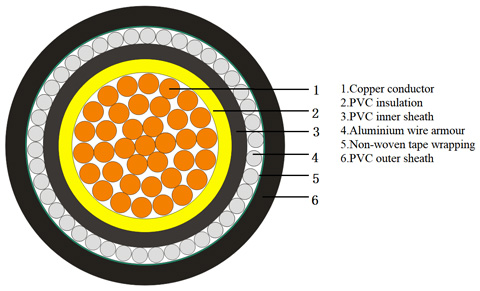

0.6/1kV, Single Core, Cu or Al/PVC/PVC/AWA/PVC Power Cable;
(2). 0.6/ 1kV ,Two Cores, Cu or Al/PVC/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/PVC/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/PVC/PVC/SWA/PVC Power Cable;

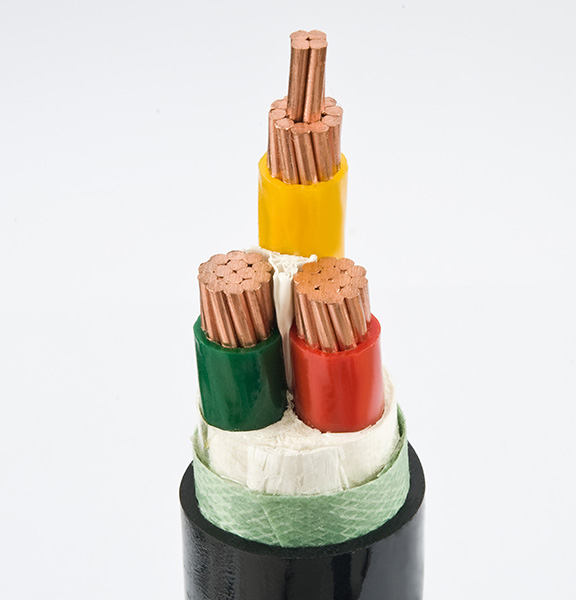

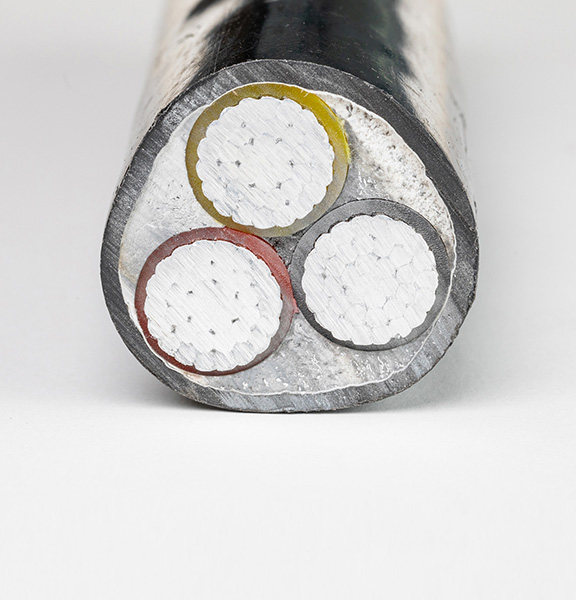

(3). 0.6/ 1kV ,Three Cores, Cu or Al/PVC/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/PVC/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/PVC/PVC/SWA/PVC Power Cable;
(4). 0.6/ 1kV ,3+1 Cores, Cu or Al/PVC/PVC Power Cable;
0.6/ 1kV ,3 +1Cores, Cu or Al/PVC/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3 +1 Cores, Cu or Al/PVC/PVC/SWA/PVC Power Cable;
(5). 0.6/ 1kV ,Four Cores, Cu or Al/PVC/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/PVC/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/PVC/PVC/SWA/PVC Power Cable;
(6). 0.6/ 1kV ,4+1 Cores, Cu or Al/PVC/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/PVC/PVC/STA/PVC Power Cable;
0.6/ 1kV , 4+1 Cores, Cu or Al/PVC/PVC/SWA/PVC Power Cable;
(7). 0.6/ 1kV ,Five Cores, Cu or Al/PVC/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/PVC/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/PVC/PVC/SWA/PVC Power Cable;
(8). 0.6/ 1kV ,3+2 Cores, Cu or Al/PVC/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/PVC/PVC/STA/PVC Power Cable;
0.6/ 1kV , 3C+2 Cores, Cu or Al/PVC/PVC/SWA/PVC Power Cable;
Underground Power Cable PARAMETERS
