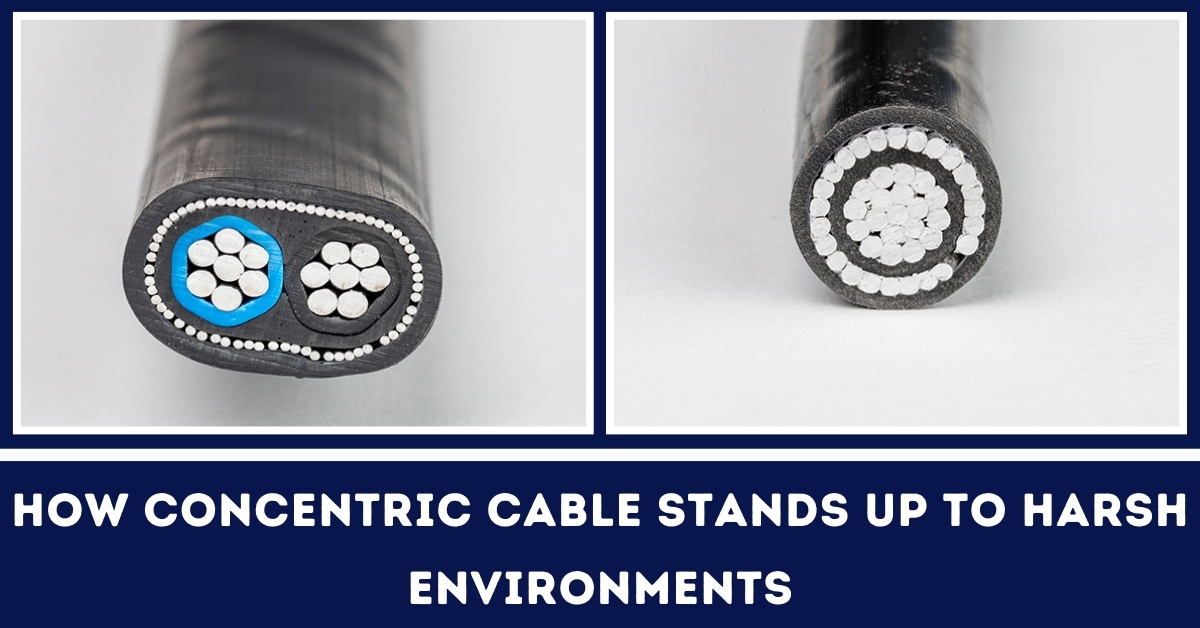

Concentric cables are a critical component in various power and communication systems, designed to perform reliably in some of the most demanding environments.
Whether it’s the extreme heat of a power plant, the freezing conditions in northern regions, or the moisture-laden atmosphere of industrial facilities, concentric cables are engineered to withstand it all.
Their robust construction, which includes multiple layers of insulating and conductive materials, ensures they provide consistent performance and long-lasting durability.
These cables are commonly used in power transmission, telecommunications, and industrial settings due to their ability to endure mechanical stress, high temperatures, moisture, and electromagnetic interference.
The unique design of these cables makes them ideal for both underground and overhead installations, where they can be subjected to harsh environmental conditions.
In this article, we will explore how it stand up to these tough conditions, delving into their temperature resistance, water resistance, mechanical strength, and ability to maintain signal integrity.
By understanding the features that make these cables so resilient, you’ll gain insight into why they are a preferred choice for demanding applications.
One of the primary attributes of concentric cables is their ability to withstand extreme temperatures, both hot and cold, without compromising performance.
These cables are essential in environments where temperature fluctuations are significant, such as power plants, telecommunications systems, and outdoor installations.
To ensure reliability in these conditions, concentric cables are designed with specific materials and construction techniques that enhance their thermal durability.
High Temperature Resistance
The materials used in concentric cables, especially the insulation and sheathing, are chosen for their ability to resist heat.
The most commonly used insulation materials, like Cross-Linked Polyethylene (XLPE), offer excellent resistance to high temperatures.
XLPE can operate at temperatures of up to 90°C continuously, and it can tolerate brief spikes of higher temperatures without degradation.
For example, cables used in power stations or industrial environments may experience occasional temperature surges, but XLPE maintains its integrity, ensuring the cable functions efficiently in high-heat conditions.
The outer sheath, typically made from thermoplastic or thermoset materials, also contributes to the cable’s heat tolerance.
These materials prevent the internal conductors from overheating and allow the cable to operate safely in extreme temperature settings, even when the surroundings are hot enough to damage other types of cables.
Low Temperature Performance
On the other side, It also designed to perform in freezing temperatures, often reaching lows of -40°C or more.
Materials such as thermoplastic elastomers are used in the outer sheath to prevent cracking or breaking under cold conditions.
This flexibility allows the cable to remain pliable even in sub-zero temperatures, reducing the risk of damage during installation and operation.
When exposed to freezing environments, some cables are designed with water-resistant layers or additional coatings to prevent ice formation inside the cable, which could lead to electrical shorts.
These materials not only preserve the physical integrity of the cable but also maintain its insulation properties, ensuring that the concentric cable continues to function optimally, even in the harshest cold weather environments.
Water and moisture are among the most damaging factors for cables, often leading to corrosion, short circuits, or electrical failure.
Concentric cables are built to resist the effects of water ingress, ensuring their long-term performance even in wet conditions.
Water Resistance
The insulation materials used in concentric cables are designed to be highly resistant to water, preventing any moisture from penetrating the cable.
One of the most effective insulation materials for water resistance is XLPE, which is inherently hydrophobic.
The tight construction of it, with their layered design, also minimizes the risk of water seeping into the core of the cable.
This design is particularly important for cables used in underwater applications or in areas that are prone to flooding, where exposure to water is constant.
These are equipped with water-blocking layers, such as gels or tapes, which create an additional barrier against moisture.
These water-blocking layers swell upon contact with water, preventing its spread inside the cable.
This feature is especially important for cables used in underground applications, where the risk of water infiltration is high due to changing ground conditions.
Corrosion Resistance
The metal components in concentric cables, such as the copper or aluminum conductors, can be vulnerable to corrosion when exposed to moisture.
To combat this, These are often coated with protective materials, such as tinned copper or galvanized steel, which resist rust and degradation.
These coatings ensure that the metal conductors inside the cable remain intact and capable of transmitting power without interference, even in humid or wet environments.
Additionally, some these cables incorporate anti-corrosion compounds within their insulation or outer sheath.
These materials help to neutralize the effects of moisture exposure, preventing corrosion and extending the lifespan of the cable.
Concentric cables are built to endure mechanical stresses such as tension, impact, abrasion, and crushing, making them ideal for environments where they may be physically stressed or exposed to heavy machinery.
Impact Resistance
The outer sheath of a concentric cable is designed to be tough and resistant to impact. Made from durable materials like PVC or polyethylene, these outer layers can absorb shocks and prevent damage to the internal conductors.
This is crucial in applications where cables may be subjected to physical impacts from heavy equipment, construction activities, or accidental strikes.
The physical robustness of it means they are less likely to be damaged during installation or while operating in environments where mechanical forces are prevalent, such as factories or outdoor settings with high foot traffic.
Abrasion Resistance
Cables are often exposed to rough surfaces and abrasive conditions, especially in industrial environments. The outer sheath of concentric cables is designed with abrasion resistance in mind.
Thermoplastic materials, including polyethylene and PVC, are tough enough to withstand the wear and tear caused by friction.
This makes it suitable for outdoor installations where they are dragged across rough terrain or exposed to heavy machinery.
In some cases, cables are further reinforced with armor or additional protective layers.
For example, some high-voltage or underground cables may have an additional metal layer to prevent external abrasions from reaching the core, which ensures continued performance even in environments where abrasion is a concern.
Tensile Strength
Concentric cables are built to resist stretching and snapping, even when subjected to significant mechanical stress.
The central conductor is often reinforced with a steel core or similar material to improve its tensile strength.
This ensures the cable can be pulled, installed, or routed without breaking or losing integrity.
In applications where cables are suspended, such as in overhead power lines or telecommunication setups, this added tensile strength is vital.
It ensures the cable can handle the weight of its own construction and any external forces (e.g., wind or vibrations) without snapping or causing damage to the network.
In industries like telecommunications, power distribution, and industrial control systems, electromagnetic interference (EMI) can disrupt signal integrity, cause data corruption, or even damage sensitive equipment.
Concentric cables are specifically designed to minimize EMI, ensuring reliable performance in environments with high electrical activity.
Shielding from EMI
The concentric design of these cables naturally helps shield the inner conductors from external electromagnetic fields.
The outer layer of conducting wires, typically made from copper or aluminum, acts as a shield, preventing electromagnetic waves from interfering with the signal or power transmitted through the cable.
This construction ensures that the internal signals remain intact, even in environments where electromagnetic fields are prevalent, such as near high-voltage power lines or in industrial facilities with heavy machinery.
Signal Integrity
Maintaining signal integrity is critical in applications such as data transmission, control systems, and telecommunications.
It help preserve the quality of signals by acting as a barrier to unwanted electromagnetic interference.
The layers of insulation and shielding reduce the likelihood of EMI from external sources, ensuring clear and uninterrupted data flow.
In some cases, These are designed with additional shielding, such as metallic braids or foil layers, to further enhance their EMI protection.
These cables are particularly useful in sensitive environments, like hospitals or research labs, where even small amounts of interference could lead to significant disruptions.
Concentric cables are designed to be both durable and flexible, making them easy to install in a wide range of environments.
Their flexibility ensures they can be routed through complex pathways, making installation more efficient and reducing the risk of damage during the process.
Bending and Routing
It engineered to bend without damaging the inner conductors, allowing them to be routed through tight spaces or around obstacles.
This flexibility is especially important in environments where the cable needs to be installed in confined areas, such as tunnels, conduits, or across uneven ground.
The ability to bend without causing internal damage allows for a quicker and less costly installation process.
Low Maintenance and Long Life
One of the key advantages of concentric cables is their long lifespan and low maintenance requirements.
The materials used in concentric cables are designed to last for decades, reducing the need for frequent replacements or repairs.
Once installed, It require minimal attention, which makes them ideal for use in remote or hard-to-reach locations.
Reduced Risk of Damage During Installation
The physical design of concentric cables minimizes the risk of damage during installation.
Because of their flexibility and rugged construction, These cables are less likely to be damaged when pulled through conduits, buried underground, or exposed to physical stress during the installation process.
This reduces the risk of costly repairs and ensures that the cable can perform optimally from the moment it’s installed.
Concentric cables stand out as a reliable and durable solution for a wide range of demanding environments.
Their ability to endure extreme temperatures, resist moisture and water ingress, withstand mechanical stresses, and protect against electromagnetic interference ensures consistent performance in critical applications.
Whether it’s high heat in industrial facilities, freezing temperatures in remote locations, or exposure to harsh physical conditions, concentric cables are engineered to maintain their integrity over time.
Additionally, their flexibility and ease of installation make them a cost-effective choice for projects requiring efficient setup and long-term operation.
By understanding the key attributes of it such as their superior temperature resistance, water-blocking capabilities, mechanical strength, EMI protection, and flexibility industries can confidently rely on them for power transmission, telecommunications, and various other applications.
These cables ensure that networks continue to function reliably, even in the face of environmental challenges, reducing downtime and maintenance costs.
Overall, concentric cables are an essential component for ensuring the smooth and uninterrupted operation of systems in tough, high-demand environments.
