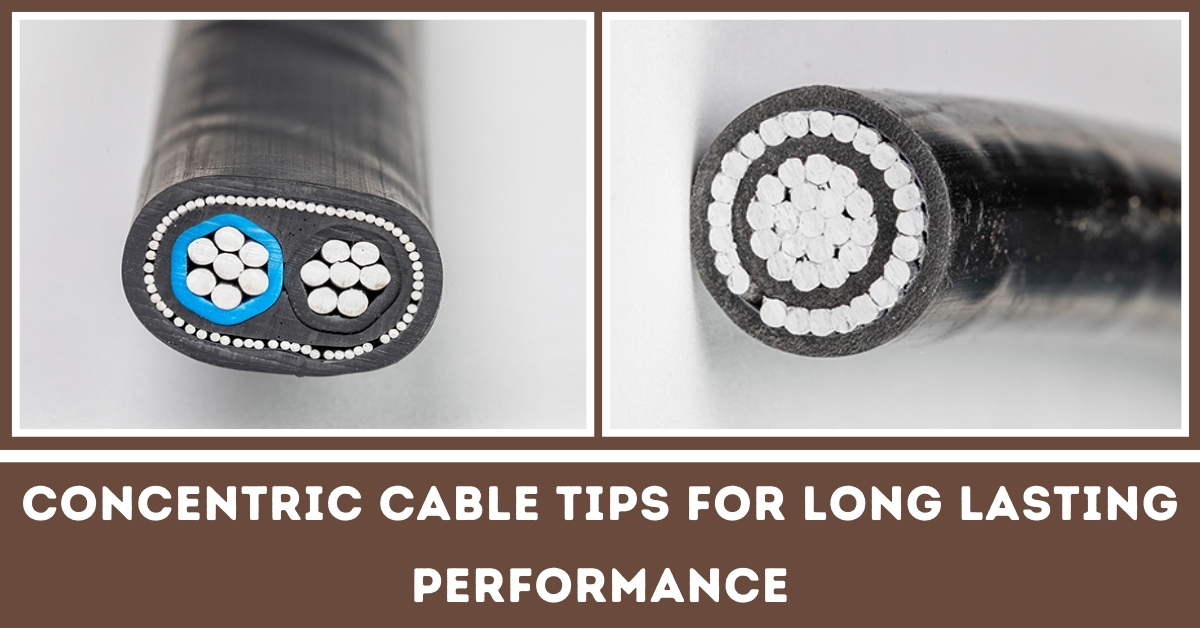

Concentric cables are a cornerstone of reliable power and communication systems. Their unique design—a central conductor encased by concentric layers of additional conductors offers unmatched durability, safety, and performance.
Widely used in power distribution, telecommunications, and industrial applications, these cables are engineered to minimize electromagnetic interference and withstand harsh environments.
However, even the best cables can fall short of their potential without proper handling, installation, and maintenance.
Factors like incorrect storage, improper tools, or ignoring manufacturer guidelines can significantly shorten their lifespan and efficiency.
On the flip side, implementing best practices can drastically reduce failures, enhance performance, and save costs over time.
This guide is designed to provide actionable tips to ensure your concentric cables deliver long-lasting performance.
Through real-world insights and practical advice, you’ll learn how to avoid common pitfalls, optimize installations, and embrace innovative trends in cable technology.
Whether you’re planning a new system or maintaining an existing one, this resource equips you with the knowledge to maximize the efficiency and longevity of your concentric cables.
Ensuring the long-term performance of concentric cables requires proper handling, installation, and maintenance. Below is a comprehensive guide covering the essential steps to maximize their lifespan and efficiency.
The foundation for cable longevity starts with how they are stored and handled before use. Poor storage conditions or rough handling can compromise their structural integrity, leading to performance issues.
1. Store cables in areas free from moisture, direct sunlight, and temperature extremes. Humidity can degrade insulation, while heat can cause warping or cracking.
2. Keep cables away from sharp objects, heavy machinery, or situations that may result in cuts or dents. Always use protective coverings during transport and storage.
3. Each cable has a specified minimum bending radius. Exceeding this limit can damage internal conductors or weaken the insulation. Ensure cables are uncoiled carefully and laid out without sharp bends.
Using the correct type of concentric cable for a specific application is critical. Mismatched cables can result in inefficiency, frequent failures, or safety hazards.
1. Ensure the cable’s voltage capacity matches the requirements of the installation. Using cables rated for lower voltages in high-voltage environments can lead to breakdowns.
2. For outdoor applications, use UV-resistant cables. Underground installations require water- and corrosion-resistant models, while industrial environments often need cables resistant to oil and chemicals.
3. Cables must be chosen based on their ability to handle the required current without overheating. Always factor in potential future load increases when making your selection.
Improper tools can damage cables during installation, reducing their performance or lifespan. Specialized equipment ensures a clean and safe installation process.
1. Use tools specifically designed for concentric cables to avoid nicking or damaging the insulation and inner conductors.
2. Proper terminations are critical for electrical performance. Crimping tools designed for concentric cables provide secure connections that resist loosening over time.
3. When pulling cables over long distances or through conduits, use rollers, lubricants, and pulling grips to prevent excessive tension or abrasions.
Each cable is designed with specific operational limits and installation requirements. Adhering to the manufacturer’s instructions is crucial for safety and performance.
1. Avoid using cables in environments that exceed their temperature rating, as this can lead to insulation breakdown.
2. Follow guidelines for spacing, bending, and securing cables during installation. Overlooking these details can compromise the cable’s durability.
3. Never exceed the specified voltage or current capacity of the cable to prevent overheating and failures.
Loose or improper terminations can lead to arcing, overheating, or even electrical fires. Ensuring secure connections is a critical step in cable installation.
1. Ensure terminals and connectors are clean and free from corrosion before securing the cable.
2. Connections should be firm without being overtightened. Excessive force can deform the conductors or damage insulation.
3. In environments prone to moisture or chemical exposure, protective sleeves or sealing compounds can safeguard terminations against damage.
Overloading a cable beyond its designed capacity can lead to overheating, insulation damage, and conductor degradation. Proper load management is key to extending cable life.
1. When designing your system, consider future load increases. Using cables with a 10-15% higher capacity than current needs ensures long-term reliability.
2. Avoid concentrating too much load on a single cable. Distribute the load evenly across multiple circuits where possible.
3. Regularly check current levels in cables to ensure they remain within safe limits.
Regular maintenance and inspections help identify and address potential issues before they escalate.
1. Look for signs of wear, such as cracks, discoloration, or exposed conductors.
2. Periodically test insulation resistance using a megohmmeter to detect any deterioration.
3. Use thermal imaging to identify hotspots that could indicate overloading, loose connections, or damaged insulation.
4. Promptly replace cables showing significant wear or damage to prevent further issues.
Concentric cables are often exposed to various environmental stresses. Selecting cables designed for these conditions and implementing additional protections can prevent premature degradation.
1. For underground or outdoor applications, use cables with water-resistant insulation.
2. Direct sunlight can degrade standard insulation. Use cables with UV-resistant sheathing for outdoor installations.
3. Install cables rated for the expected temperature range of the environment to prevent insulation cracking or melting.
Proper labeling and organization of cables not only simplify future maintenance but also reduce the risk of operational errors.
1. Use durable labels to identify each cable’s purpose, voltage rating, and circuit location.
2. Arrange cables neatly, ensuring easy access for inspections or repairs. Use cable trays or conduits for added protection and organization.
10. Plan for Future Upgrades
A common mistake is designing a system with no room for expansion. Plan your cable installations with future needs in mind to avoid overloading and costly upgrades later.
1. Installing larger conduits during initial construction allows for easy addition of new cables.
2. Select cables with a higher capacity than current requirements to accommodate future growth.
Monitoring cable performance helps detect and resolve issues early, preventing downtime and costly repairs.
1. Keep an eye on voltage levels to detect drops caused by faulty cables or connections.
2. Use ammeters to measure current flow and ensure it doesn’t exceed safe limits.
3. Install sensors to monitor cable temperatures and identify potential overheating.
Improper handling by untrained personnel is a leading cause of cable failures. Ensure that all team members working with concentric cables are properly trained.
1. Train teams on proper handling, installation techniques, and the use of appropriate tools.
2. Periodic training sessions help teams stay updated on the latest practices and technologies.
1. Eco-Friendly Designs: With sustainability becoming a priority, manufacturers are introducing cables with recyclable materials and low environmental impact.
2. Smart Cables: Advanced concentric cables now come with integrated sensors to monitor performance, detect faults, and predict failures.
3. Lightweight Materials: Innovations in material science are producing cables that are lighter yet equally durable, simplifying installation and reducing transportation costs.
The performance and lifespan of concentric cables depend heavily on the care and attention given throughout their lifecycle.
From proper storage and handling to selecting the right cable for the job, each step plays a vital role in maintaining efficiency and preventing failures.
Following manufacturer guidelines, using appropriate tools, and ensuring secure terminations are foundational practices that safeguard the integrity of the cables.
Additionally, regular maintenance, routine inspections, and proactive measures like monitoring system performance and protecting against environmental factors can identify potential issues before they escalate.
Planning for future growth and training personnel further strengthens the reliability of your installations.
By adhering to these practical and proven strategies, you not only extend the life of your concentric cables but also optimize operational performance and reduce downtime.
Remember, investing in proper installation and upkeep today ensures a safer, more efficient, and cost-effective system for years to come. With the right approach, concentric cables can deliver the long-lasting performance they are designed for.
