Concentric cables play a crucial role in modern electrical distribution systems, particularly in underground and service entrance applications.
Their unique design featuring a central conductor surrounded by helically wound neutral wires enhances electrical performance, improves fault current management, and ensures reliable grounding.
However, improper installation can lead to operational failures, safety hazards, and costly maintenance issues.
Safe installation requires a thorough understanding of cable construction, regulatory compliance, handling procedures, and best practices for routing, termination, and testing.
Electricians, contractors, and engineers must follow industry standards such as the National Electrical Code (NEC) and IEEE guidelines to ensure compliance and long-term reliability.
From selecting the right cable for specific voltage and environmental conditions to conducting post-installation testing, every step must be performed meticulously to prevent future issues.
This blog will explain safe installation practices for concentric cables, covering essential aspects such as storage, handling, routing, termination, grounding, testing, and maintenance.
By following these guidelines, you can enhance the safety, durability, and efficiency of your electrical system.

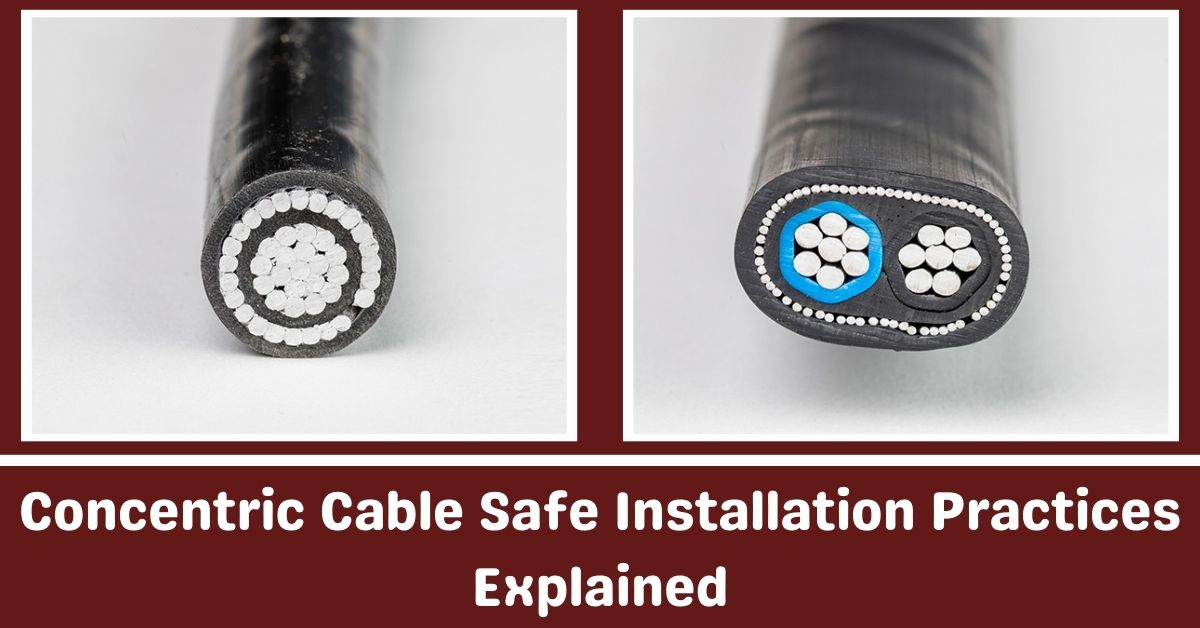

Concentric Cables are designed for efficient electrical distribution while ensuring grounding and fault current management. They consist of several key components that work together to provide safety and reliability.
The central conductor, usually made of copper or aluminum, carries the electrical current. Surrounding this conductor is an insulation layer, typically made from cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR), which prevents electrical leakage and protects against short circuits.
Around the insulation layer, concentric neutral wires are helically wound. These serve two main purposes: providing a return path for unbalanced current and acting as a grounding mechanism.
This feature enhances safety by quickly clearing faults and reducing the risk of electrical shock.
The final layer is the outer jacket, which provides mechanical protection against environmental elements such as moisture, chemicals, and physical impact.
Depending on the application, the jacket material may vary, with options like polyvinyl chloride (PVC) or polyethylene (PE).
Understanding this construction is crucial for ensuring proper handling and installation, as damage to any layer can compromise the cable’s functionality and safety.
Before installing concentric cables, careful planning is necessary to ensure compliance with safety standards and long-term performance.
The first step is verifying that the selected cable meets all regulatory requirements, including the National Electrical Code (NEC), IEEE standards, and IEC guidelines.
These regulations define voltage ratings, grounding specifications, and safety measures that must be followed.
Proper cable selection is critical for efficient operation. The cable must match the system’s voltage rating, ampacity, and environmental conditions.
If the cable is exposed to high temperatures, chemicals, or moisture, selecting a model with enhanced insulation and protective coatings is essential.
The installation site must be prepared before laying the cable. The route should be clearly marked, ensuring no sharp bends, obstacles, or interference with other utilities.
Additionally, confirm that all necessary grounding infrastructure is in place to prevent floating voltages and ensure electrical safety. Proper planning minimizes the risk of errors and improves installation efficiency.
Improper handling and storage of concentric cables can lead to insulation damage, conductor deformation, and performance degradation. Cables should always be stored in dry, ventilated areas to prevent moisture absorption.
Reels should be placed on stable surfaces to avoid tilting, which can cause uneven winding and tension issues.
When transporting cables, mechanical lifting should be used for heavier reels to prevent dragging, which can damage the outer jacket.
Always check for manufacturer-recommended bending radius limits before moving cables, as excessive bending can create stress points, leading to insulation breakdown or conductor fatigue.
Before installation, cables should be inspected for physical damage, signs of moisture ingress, or insulation irregularities. Any compromised cables should be replaced to ensure electrical safety and system reliability.
Proper routing of concentric cables is essential to prevent mechanical stress, overheating, and electrical hazards. For underground installations, a trench must be dug to the appropriate depth as specified by NEC guidelines (typically 24 inches for residential areas).
The bottom of the trench should be lined with soft bedding material, such as sand, to cushion the cable and prevent damage from sharp objects.
Once laid, the cable should be backfilled with screened soil to ensure even distribution and reduce the risk of shifting or external pressure.
For overhead installations, proper clearance from buildings, trees, and other structures must be maintained. Cables should be supported using rated suspension hardware to prevent sagging, which could lead to excessive mechanical stress.
When pulling cables, ensure that pulling tensions do not exceed manufacturer specifications. Lubricants specifically designed for electrical cables can be used to reduce friction in conduit installations.
Additionally, bends should follow the minimum bending radius recommended to avoid damaging the insulation or conductor.
Proper termination of concentric cables ensures secure connections, minimizes power loss, and prevents overheating. When stripping the cable, use dedicated insulation stripping tools to avoid damaging the underlying layers.
The concentric neutral wires should be cut to the correct length and separated appropriately for proper grounding.
Connections should be made using compression lugs or bolted connectors, ensuring high conductivity and minimal resistance.
Aluminum conductors require oxide inhibitors to prevent corrosion, while all connections should be torqued to manufacturer-recommended values for long-term stability.
Grounding is a crucial aspect of concentric cable installations. The concentric neutral wires must be bonded to the grounding system at designated points to maintain a continuous path for fault currents.
Proper grounding helps prevent voltage fluctuations, equipment damage, and safety risks. The use of grounding clamps, exothermic welding, or mechanical connectors ensures a secure and lasting ground connection.
Before energizing a newly installed cable, thorough testing must be conducted to confirm safety and functionality. The insulation resistance test, performed using a megohmmeter, checks for any insulation breakdown that could lead to short circuits or electrical leakage.
A continuity test should be performed to verify that the conductor is intact and correctly terminated.
Additionally, a ground resistance test ensures that the grounding system is effective, with resistance values ideally below 5 ohms for optimal performance.
After the system is energized, thermal scanning using an infrared camera can identify potential hot spots, loose connections, or overload conditions.
Periodic visual inspections should also be conducted to check for any physical damage, exposed neutral wires, or loose terminations.
Ensuring these tests are completed before full operation prevents costly failures and enhances electrical safety.
Routine maintenance is essential for ensuring the longevity and reliability of concentric cable installations. Regular inspections should focus on identifying corrosion, moisture ingress, insulation degradation, or mechanical damage.
If issues are detected, immediate corrective actions must be taken to prevent failures.
Common installation mistakes include incorrect grounding, exceeding pulling tension limits, and improper bending. These can lead to overheating, electrical shock risks, or premature cable failure.
Using proper installation techniques and following manufacturer guidelines helps prevent these issues.
For minor insulation damage, self-fusing repair tape can be applied to restore insulation integrity. However, for severe damage, the affected section of the cable should be replaced, and new terminations should be made.
All repairs must be performed following lockout/tagout procedures to ensure worker safety when handling live systems.
The safe installation of concentric cables is a critical process that requires strict adherence to industry standards and best practices.
From selecting the right cable and planning the installation route to proper handling, termination, and grounding, every step plays a crucial role in ensuring system reliability and safety.
Mishandling, excessive bending, or improper termination can lead to insulation failure, electrical hazards, and costly repairs.
Testing and inspection are equally important, as they help identify potential issues before the system is energized.
Insulation resistance tests, continuity checks, and grounding assessments ensure that the installation meets electrical safety requirements.
Additionally, ongoing maintenance, including routine inspections for wear, corrosion, and mechanical stress, helps prevent long-term failures and enhances performance.
By following these best practices, electricians, contractors, and engineers can ensure that concentric cables operate efficiently and safely in both residential and industrial applications.
Proper installation not only prevents downtime and electrical hazards but also extends the lifespan of the cable system, reducing long-term costs and improving overall safety.
