All aluminum alloy conductor (AAAC)
All aluminum alloy conductor (AAAC)
All aluminum alloy conductor (AAAC)
All aluminum alloy conductor (AAAC)

All aluminum alloy conductor (AAAC)

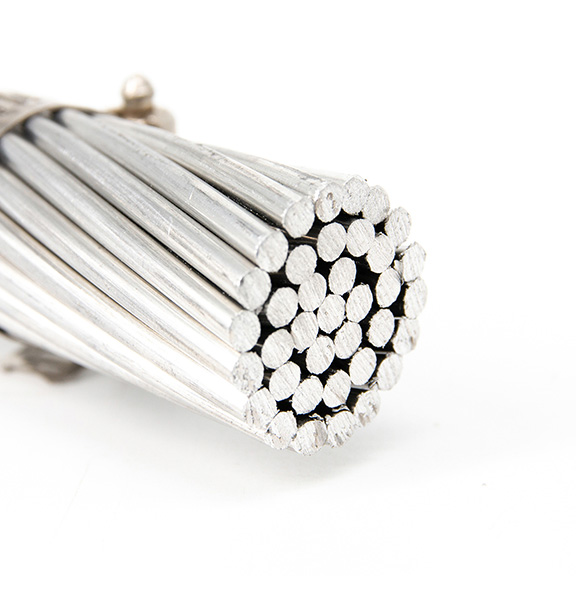

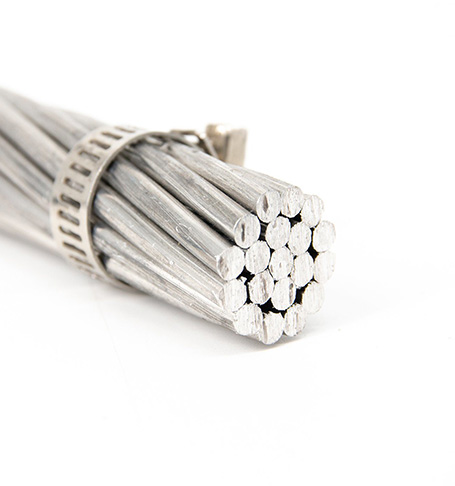

All Aluminum Alloy Conductor( AAAC conductor) is designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio.



AAAC conductor is used as bare overhead transmission cable and as primary and secondary distribution cable.



And it is also suitable for laying scross basins, rivers and valleys where special geographical teatures exist.



One of the key advantages of AAAC conductors is their high strength-to-weight ratio.



This means that AAAC conductors can carry large amounts of current without becoming overly bulky or heavy, which is particularly important for overhead transmission lines.

Send Email Get Price
SPECIFICATIONS CONSTRUCTION PARAMETER RELATED PRODUCTS INQUIRY

SPECIFICATIONS

1. APPLIACATION: DISTRIBUTION LINE POWER NETWORKS.

2. STANDARD: IEC 61089, ASTM B399, DIN 48201, BS EN 50183, BS 3242, AS 1531, GB/T 1179-2008(A1).

3. INSTALLATION CONDITIONS: OPEN AIR.

4. PACKAGING: BY ROLL, BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM..

CONSTRUCTION

ALL-ALUMINUM-ALLOY-CONDUCTOR(AAAC)-3

1. aaac conductor



Hard drawn aluminum alloy wire

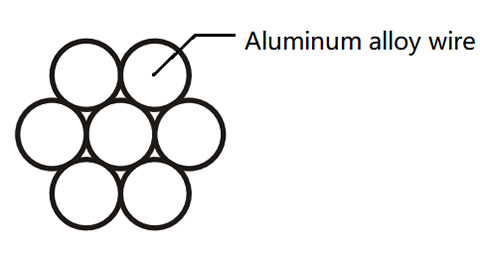

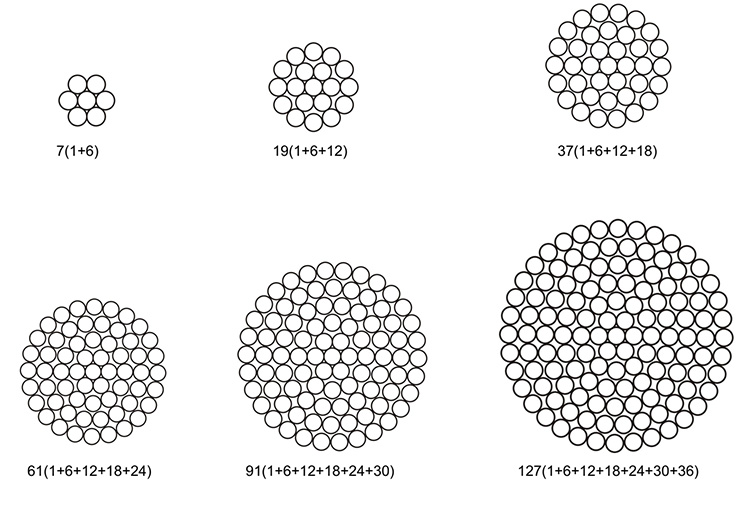

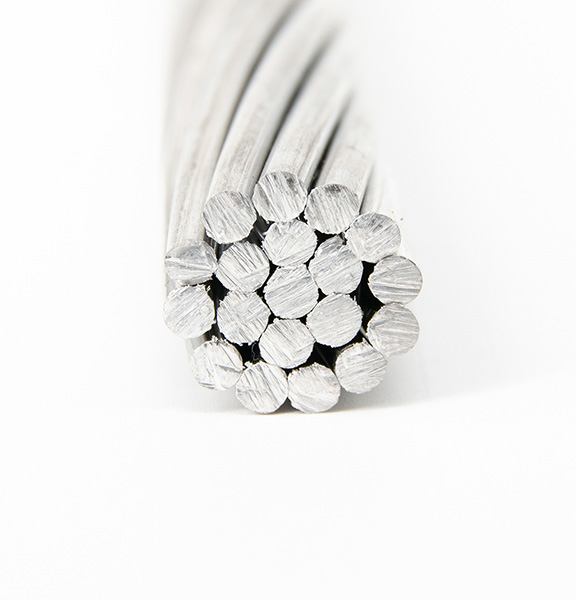

Generally, the AAAC Conductor is formed by the following construction:

ALL-ALUMINUM-ALLOY-CONDUCTOR(AAAC)-4

PARAMETER

  • AS 1531
  • ASTM B399
  • ASTM B399
  • BS EN 50183
  • BS 3242
  • DIN 48201
  • GB/T 1179-2008(A1)
  • IEC 61089
ALL ALUMINIUM ALLOY CONDUCTOR               AS 1531
Code Number Stranding and Wire
Diameter		 Overall
Diameter		 Linear
Mass		 Nominal Breaking Load Max. D.C. Resistance at 20℃
No./mm mm kg/km kN Ω/km
Diamond 7/2.50 7.5 94  9.6  0.9670
Dolomite 7/2.75 8.25 114  11.6  0.7990
Emerald 7/3.00 9.00  135  13.9  0.6710
Garnet 7/3.75 11.25 212  21.7  0.4300
Jade 7/4.50 13.50  305  31.2  0.2980
Jasper 7/4.75 14.25 340  34.8  0.2680
Opal 19/3.25 16.25 434  44.2  0.2120
Patronite 19/3.50 17.50  503  51.3  0.1830
Pearl 19/3.75 18.75 577  58.8  0.1590
Ruby 37/3.00 21.00  721  73.5  0.1280
Ruthenium 37/3.25 22.75 846  86.1  0.1090
Rutile 19/4.75 23.75 926  94.4  0.0991
Sapphire 37/3.75 26.25 1127  115.0  0.0819
Spinel 61/3.25 29.25 1398  135.0  0.0662
Tantalum 61/3.50 31.50  1621  156.0  0.0572
Topaz 61/3.75 33.75 1861  179.0  0.0498
6201 ALL ALUMINIUM ALLOY CONDUCTOR         ASTM B399
Code Name Area Size Stranding and Wire Diameter Overall Diameter Weight Max. D.C. Resistance at 20℃
Nominal Actual
MCM mm2 AWG or MCM No./mm mm kg/km ohm/km
Akron 30.58 15.48 6 7/1.68 5.04 42.7 0.3966
Alton 48.69 24.71 4 7/2.12 6.35 68 0.3811
Aes 77.47 39.22 2 7/2.67 8.02 108 0.3671
Ausa 123.3 62.38 1/0 7/3.37 10.11 172 0.3524
Anaheim 155.4 78.65 2/0 7/3.78 11.35 217 0.3448
Amherst 195.7 99.22 3/0 7/4.25 12.75 273 0.3375
Alliance 246.9 125.1 4/0 7/4.77 14.31 345 0.3306
Butte 312.8 158.6 266.8 19/3.26 16.3 437 0.3196
Canton 394.5 199.9 336.4 19/3.66 18.3 551 0.3124
Cairo 465.4 235.8 397.5 19/3.98 19.88 650 0.3071
Darien 559.5 283.5 477 19/4.36 21.79 781 0.3014
Elgin 652.4 330.6 556.5 19/4.71 23.54 911 0.2966
Flint 740.8 375.3 636 37/3.59 25.16 1035 0.2917
Greely 927.2 469.8 795 37/4.02 28.14 1295 0.2846
6201 ALL ALUMINIUM ALLOY CONDUCTOR         ASTM B399
Area Stranding and Wire Diameter Approx. Overall Diameter Weight Nominal Breaking Load Max. D.C. Resistance at 20℃
Nominal Actual
AWG or MCM mm2 No./mm mm kg/km kN Ω/km
6 13.30  7/1.554 4.67 37 4.22 2.5199
4 21.15  1/1.961 5.89 58 6.71 1.5824
2 33.63  7/2.474 7.42 93 10.68 0.9942
1/0 53.48  7/3.119 9.36 148 16.97 0.6256
2/0 67.42  7/3.503 10.51 186 20.52 0.4959
3/0 85.03  7/3.932 11.8 234 25.86 0.3936
4/0 107.23  7/4.417 13.26 296 32.63 0.3119
250 126.66  19/2.913 14.57 349 38.93 0.2642
300 152.10  19/3.193 15.97 419 46.77 0.2199
350 177.35  19/3.447 17.24 489 52.25 0.1887
400 202.71  19/3.686 18.43 559 59.74 0.165
450 228.00  19/3.909 19.55 629 67.19 0.1467
500 253.35  19/4.120 20.6 698 74.64 0.1321
550 278.60  37/3.096 21.67 768 83.8 0.1202
600 303.80  37/3.233 22.63 838 91.38 0.1102
650 329.25  37/3.366 23.56 908 97.94 0.1016
700 354.55  37/3.493 24.45 978 102.2 0.0944
750 380.20  37/3.617 25.32 1049 109.6 0.088
800 405.15  37/3.734 26.14 1117 116.8 0.0826
900 456.16  37/3.962 27.73 1258 131.5 0.0733
1000 506.71  37/4.176 29.23 1399 146.1 0.066
ALL ALUMINIUM ALLOY CONDUCTOR              BS EN 50183
Code Name Calculated Area No. Of Wires Diameter Weight Rated Strength Max. D.C. Resistance at 20℃
Wire Cond.
mm2 mm mm kg/km kN ohm/km
Box 18.8 7 1.85 5.55 51.4 5.55 1.7480
Acacia 23.8 7 2.08 6.24 64.9 7.02 1.3828
Almond 30.1 7 2.34 7.02 82.2 8.88 1.0926
Cedar 35.5 7 2.54 7.62 96.8 10.46 0.9273
Deodar 42.2 7 2.77 8.31 115.2 12.44 0.7797
Fir 47.8 7 2.95 8.85 130.6 14.11 0.6875
Hazel 59.9 7 3.3 9.9 163.4 17.66 0.5494
Pine 71.6 7 3.61 10.8 195.6 21.14 0.4591
Holly 84.1 7 3.91 11.7 229.5 24.79 0.3913
Willow 89.7 7 4.04 12.1 245 26.47 0.3665
Oak 118.9 7 4.65 14 324.5 35.07 0.2767
Mulberry 150.9 19 3.18 15.9 414.3 44.52 0.2192
Ash 180.7 19 3.48 17.4 496.1 53.31 0.183
Elm 211 19 3.76 18.8 579.2 62.24 0.1568
Poplar 239.4 37 2.87 20.1 659.4 70.61 0.1387
Sycamore 303.2 37 3.23 22.6 835.2 89.4 0.1095
Upas 362.1 37 3.53 24.7 997.5 106.82 0.0917
Yew 479 37 4.06 28.4 1319.6 141.31 0.0693
Totara 498.1 37 4.14 29 1372.1 146.93 0.0666
Rubus 586.9 61 3.5 31.5 1622 173.13 0.0567
Sorbus 659.4 61 3.71 33.4 1822.5 194.53 0.0505
Araucaria 821.1 61 4.14 37.3 2269.4 242.24 0.0406
Redwood 996.2 61 4.56 41 2753.2 293.88 0.0334
ALL ALUMINIUM ALLOY CONDUCTOR                BS 3242
Code Name Nominal Area Stranding and Wire
Diameter		 Sectional Area Diameter of Conductor Linear Mass Rated Strength Max. D.C. Resistance at 20℃
mm2 No./mm mm2 mm kg/km kgf Ω/km
Box 15 7/1.85 18.82 5.55 51 537 1.7495
Acacia 20 7/2.08 23.79 6.24 65 680 1.384
Almond 25 7/2.34 30.1 7.02 82 861 1.0934
Cedar 30 7/2.54 35.47 7.62 97 1014 0.9281
- 35 7/2.77 42.18 8.31 115 1205 0.7804
Fir 40 7/2.95 47.87 8.85 131 1367 0.688
Hazel 50 7/3.30 59.87 9.9 164 1711 0.5498
Pine 60 7/3.61 71.65 10.83 196 2048 0.4594
- 70 7/3.91 84.05 11.73 230 2402 0.3917
Willow 75 7/4.04 89.73 12.12 245 2565 0.3669
- 80 7/4.19 96.52 12.57 264 2758 0.3441
- 90 7/4.44 108 13.32 298 3112 0.3023
Oak 100 7/4.65 118.9 13.95 325 3398 0.2769
- 100 19/2.82 118.7 14.1 326 3393 0.2787
Mulbery 125 19/3.18 150.9 15.9 415 4312 0.2192
Ash 150 19/3.48 180.7 17.4 497 5164 0.1831
Elm 175 19/3.76 211 18.8 580 6030 0.1568
Poplar 200 37/2.87 239.4 20.09 659 8841 0.1385
- 225 37/3.05 270.3 21.35 744 7724 0.1227
Sycamore 250 37/3.22 303.2 22.54 835 8664 0.1093
Upas 300 37/3.53 362.1 24.71 997 10350 0.09156
Walnut 350 37/3.81 421.8 26.67 1162 12053 0.0786
Yew 400 37/4.06 479 28.42 1319 13685 0.06921
Totara 425 37/4.14 498.1 28.98 1372 14233 0.06656
Rubus 500 61/3.50 586.9 31.5 1620 16771 0.05662
Araucaria 700 61/4.14 821.1 37.26 2266 23450 0.04047
ALL ALUMINIUM ALLOY CONDUCTOR               DIN 48201
Nominal Aluminum
Area		 Actual
Area		 Stranding and Wire
Diameter		 Overall
Diameter		 Linear
Mass		 Nominal Breaking Load Max. D.C. Resistance at 20℃
mm2 mm2 No./mm mm kg/km daN Ω/km
16 15.89  7/1.70 5.1  43 444 2.0910
25 24.25  7/2.10 6.3  66 677 1.3703
35 34.36  7/2.50 7.5  94 960 0.9669
50 49.48  7/3.00 9.0  135 1382 0.6714
50 48.36  19/1.80 9.0  133 1350 0.6905
70 65.81  19/2.10 10.5  181 1838 0.5073
95 93.27  19/2.50 12.5  256 2605 0.3579
120 116.99  19/2.80 14.0  322 3268 0.2854
150 147.11  37/2.25 15.2  406 4109 0.2274
185 181.62  37/2.5 17.5  501 5073 0.1842
240 242.54  61/2.25 20.2  670 6774 0.1383
300 299.43  61/2.50 22.5  827 8363 0.112
400 400.14  61/2.89 26.0  1104 11176 0.0838
500 499.63  61/3.23 29.1  1379 13960 0.06709
625 626.20  91/2.96 32.6  1732 17490 0.0540
800 802.09  91/3.35 36.9  2218 22402 0.0418
1000 999.71  91/3.74 41.1  2767 27922 0.0335
ALL ALUMINIUM ALLOY CONDUCTOR             GB/T 1179-2008(A1)
Nominal Area Code Name Sectional Area Stranding and Wire
Diameter		 Overall
Diameter		 Linear Mass Rated Strength Max. D.C. Resistance at 20℃
mm2 mm2 No./mm mm kg/km kN Ω/km
20 16 18.6 7/1.84 5.52 50.8 6.04 1.7896
30 25 29 7/2.30 6.9 79.5 9.44 1.1453
45 40 46.5 7/2.91 8.72 127.1 15.1 0.7158
75 63 73.2 7/3.65 10.9 200.2 23.06 0.4545
120 100 116 19/2.79 14 319.3 37.76 0.2877
145 125 145 19/3.12 15.6 399.2 47.2 0.2302
185 160 186 19/3.53 17.6 511.0  58.56 0.1798
230 200 232 19/3.95 19.7 638.7 73.2 0.1439
300 250 290 19/4.41 22.1 798.4 91.5 0.1151
360 315 366 37/3.55 24.8 1008.4 115.29 0.0916
465 400 465 37/4.00 28.0  1280.5 146.4 0.0721
520 450 523 37/4.24 29.7 1440.5 164.7 0.0641
580 500 581 37/4.47 31.3 1600.6 183.00  0.0577
650 560 651 61/3.69 33.2 1795.3 204.96 0.0516
720 630 732 61/3.91 35.2 2019.8 230.58 0.0458
825 710 825 61/4.15 37.3 2276.2 259.86 0.0407
930 800 930 61/4.40 39.6 2564.8 292.80  0.0361
1050 900 1046 91/3.83 42.1 2888.3 329.40  0.0321
1150 1000 1160 91/4.03 44.4 3209.3 366.00  0.0289
1300 1120 1301 91/4.27 46.9 3594.4 409.92 0.0258
ALL ALUMINIUM ALLOY CONDUCTOR              IEC 61089
Code Number A2 Conductor A3 Conductor　 Max. D.C. Resistance of Conductor at 20℃
Number
of Wires　		 Diameter of Wires Diameter of Conductor Approx. Weight Rated Strength Number
of Wires　		 Diameter
of Wires		 Diameter of Conductor Approx. Weight Rated Strength
mm² - mm mm kg/km kN - mm mm kg/km kN Ω/km
16 7 1.83 5.49 50.4 5.43 7 1.84 5.52 50.8 6.04 1.7896
25 7 2.29 6.87 78.7 8.49 7 2.3 6.9 79.5 9.44 1.1453
40 7 2.89 8.67 125.9 13.58 7 2.91 8.73 127.1 15.1 0.7158
63 7 3.63 10.8 198.3 21.39 7 3.65 10.95 200.2 23.06 0.4545
100 19 2.78 13.9 316.3 33.95 19 2.79 13.95 319.3 37.76 0.2877
125 19 3.1 15.5 395.4 42.44 19 3.12 15.6 399.2 47.2 0.2302
160 19 3.51 17.55 506.1 54.32 19 3.53 17.65 511 58.56 0.1798
200 19 3.93 19.65 623.7 67.91 19 3.95 19.75 638.7 73.2 0.1439
250 19 4.39 21.95 790.8 84.68 19 4.41 22.05 798.4 91.5 0.1151
315 37 3.53 24.71 998.9 106.95 37 3.55 24.85 1008.4 115.29 0.0916
400 37 3.98 27.86 1268.4 135.81 37 4 28 1280.5 146.4o 0.0721
450 37 4.22 29.54 1426.9 152.79 37 4.24 29.68 1440.5 164.7 0.0641
500 37 4.45 31.15 1585.5 169.76 37 4.47 31.29 1600.6 183.oo 0.0577
560 61 3.67 33.03 1778.4 190.14 61 3.69 33.21 1795.3 204.95 0.0516
630 61 3.89 35.01 2000.7 213.9 61 3.91 35.19 2019.8 230.58 0.0458
710 61 4.13 37.17 2254.8 241.07 61 4.15 37.35 2276.2 259.86 0.0407
800 61 4.38 39.42 2540.6 271.62 61 4.4 39.6 2564.8 282.8 0.0361
900 91 3.81 41.91 2861.1 305.58 91 3.83 42.13 2888.3 329.4 0.0321
1000 91 4.01 44.11 3179 339.53 91 4.03 44.33 3209.3 366 0.0289
1120 91 4.25 46.75 3560.5 380.27 91 4.27 46.97 3594.4 409.92 0 0258
1250 91 4.49 49.39 3973.7 424.41 - - - - - -
