Aerial Bundle Cable (ABC) systems have become the preferred choice for overhead power distribution due to their enhanced safety, reduced power losses, and resistance to environmental factors.
Unlike traditional bare conductors, ABCs consist of insulated conductors bundled together, minimizing electrical hazards and improving system reliability.
However, improper installation can lead to safety risks, power failures, and costly repairs. Ensuring a safe and efficient ABC installation requires adherence to strict industry guidelines and best practices.
Proper planning, correct pole spacing, secure tensioning, and the use of insulated connectors are crucial for maintaining system integrity.
Additionally, compliance with IEC, IEEE, and national electrical standards ensures long-term performance and safety.
This guide provides a step-by-step approach to ABC installation, covering essential techniques such as site assessment, cable stringing, grounding, and post-installation inspections.
It also highlights common mistakes and safety precautions to prevent failures and accidents.
Whether you are a contractor, engineer, or technician, understanding these safe installation techniques will help enhance reliability, reduce operational costs, and ensure worker safety.
Let’s dive into the best practices for installing aerial bundle cables correctly and efficiently.

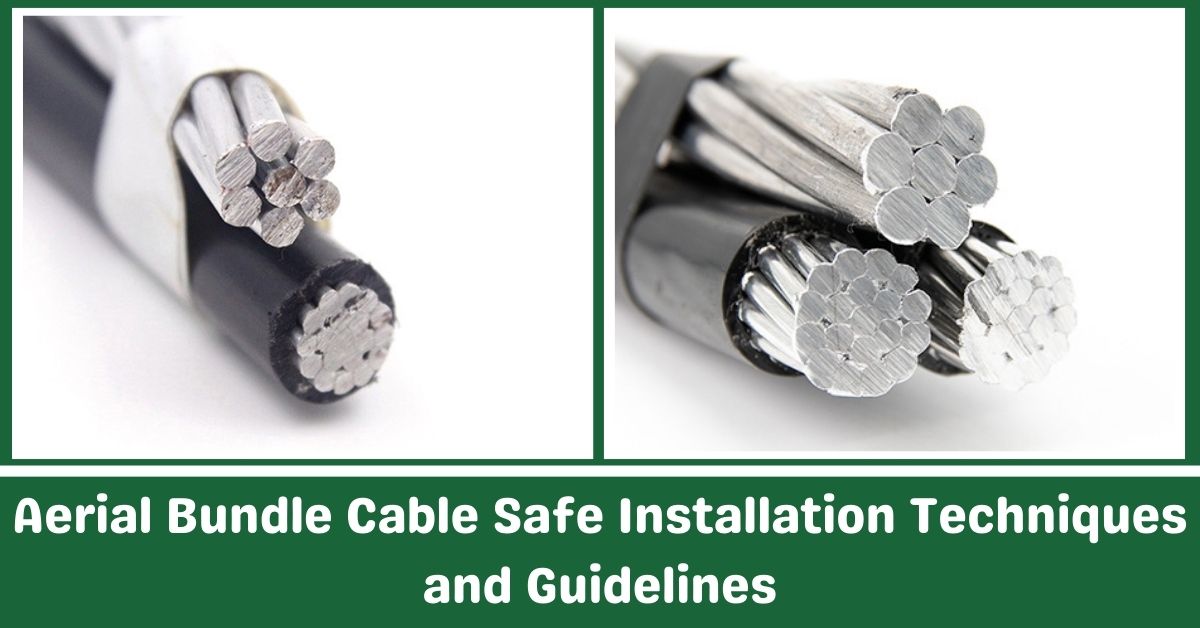

Aerial Bundle Cable (ABC) is a modern overhead power distribution system that groups insulated conductors into a single bundle.
Unlike traditional bare conductor systems, ABC reduces power losses, improves safety, and minimizes maintenance costs.
These cables are used in urban, rural, and industrial areas where reliability and resistance to environmental conditions are essential.
ABC systems come in three main categories: Low Voltage (LV) for residential and commercial use (230V–1000V), Medium Voltage (MV) for industrial and semi-urban applications (1kV–36kV), and High Voltage (HV) for large-scale transmission networks above 36kV.
The insulated design of ABC cables minimizes the risk of electrocution and short circuits, making them a preferred choice for areas prone to electrical faults or unauthorized power tapping.
The main benefits of ABC include improved safety due to insulation, lower installation costs as fewer poles are required, and better performance in harsh weather conditions.
Additionally, they help in reducing transmission losses and enhancing network efficiency.
However, to ensure the durability and effectiveness of ABC systems, proper installation techniques must be followed, considering factors like pole placement, tensioning, grounding, and regular inspections.
Before installing ABC, a comprehensive site survey and planning phase are necessary to ensure safety and efficiency.
The first step is to evaluate the site’s terrain, weather conditions, and potential obstacles such as trees, buildings, or existing utility lines. Proper planning prevents future power disruptions and unnecessary maintenance.
Compliance with electrical safety standards, such as IEC 60287 and IEEE guidelines, is essential. These regulations specify the correct installation procedures, ensuring the system’s reliability and safety.
Additionally, utility companies and contractors must adhere to national and local electrical codes to avoid legal and operational issues.
Selecting the right ABC components is crucial. The choice of cable depends on the required voltage level and environmental factors such as temperature and humidity.
Insulated support fittings, self-supporting clamps, and strain accessories must be durable and compatible with the selected cable type.
The poles used for supporting ABC should be made of galvanized steel or reinforced concrete to withstand mechanical stress and harsh weather conditions.
Another critical factor is determining the optimal pole spacing. Typically, the distance between poles ranges from 30 to 50 meters, depending on terrain and load requirements.
Poles should be properly aligned and erected with a strong foundation to prevent tilting or collapse. Ground clearance must be maintained, with a minimum of 5.5 meters for road crossings and 4 meters for pedestrian areas.
Proper grounding measures, including multiple earthing points, should be established to minimize electrical hazards.
The installation of ABC requires a structured approach to ensure electrical safety, mechanical stability, and long-term performance. The following steps outline the correct installation procedure:
Pole Erection and Alignment
Poles should be installed at predefined intervals with a strong foundation to prevent movement over time.
The depth of pole installation on soil type and pole height, but typically, at least 1.5 meters of the pole should be buried underground. Proper alignment is crucial to maintain consistent cable tension and sag control.
Stringing the Aerial Bundle Cable
Before stringing the cable, a pilot rope is used to guide the ABC along the designated route. The cable must be unrolled carefully to avoid kinks or insulation damage.
The tension applied to the cable should be within the manufacturer’s recommended range, typically between 500 and 800 Newtons for LV ABC, ensuring a balance between mechanical stability and flexibility.
Excessive tension can cause conductor breakage, while inadequate tension can lead to excessive sagging, increasing the risk of accidental contact or mechanical damage.
Installation of Insulated Clamps and Fittings
Suspension clamps are attached to poles at support points to hold the ABC securely. These clamps are designed to accommodate expansion and contraction due to temperature changes.
Strain clamps are used at termination points to distribute mechanical loads evenly and prevent stress concentration.
Self-supporting insulated connectors are installed at junctions, ensuring proper electrical contact without damaging the insulation layer.
Connecting to Transformer and Load Centers
Before making connections, ensure the transformer is properly grounded to prevent electrical faults.
Pre-insulated connectors should be used to join cables securely, and all joints must be thoroughly inspected before energizing the system.
Voltage testing should be performed to confirm that there are no weak connections or insulation failures.
Grounding and Surge Protection
To protect the system from overvoltage, neutral conductors must be grounded at multiple points. The earthing resistance should be below 10 ohms to ensure effective fault current dissipation.
Surge arresters should be installed at strategic points, such as transformer connections and high-risk areas, to protect the network from lightning and switching surges.
Once installation is complete, thorough inspections must be conducted to verify the system’s integrity and safety.
Mechanical Load Testing
Mechanical load testing involves checking the tension and sag of the ABC to ensure it meets recommended values.
Excessive sagging can result in cable contact with trees or structures, while excessive tension can lead to conductor breakage.
A pull test should be conducted on all suspension clamps and strain fittings to confirm their stability.
Electrical Testing
Insulation resistance testing should be performed to ensure that the ABC insulation is intact and does not allow current leakage.
The resistance should be above 1MΩ per kV of rated voltage. Voltage and load tests should also be conducted to verify phase balance and detect potential overloading issues.
Visual and Environmental Inspection
A final visual inspection should confirm that all connections are secure, there are no exposed conductors, and insulation is undamaged.
The surrounding environment should be checked for potential hazards, such as tree branches or other obstructions that could interfere with the cable in the future.
Mistakes during ABC installation can lead to operational failures, safety risks, and increased maintenance costs. Avoiding these common errors is crucial for long-term system performance.
Improper Cable Tensioning
Incorrect tensioning can result in mechanical stress or excessive sag. Using calibrated tensioning tools ensures that the cable remains within the specified range, preventing premature wear and damage.
Incorrect Pole Spacing
Placing poles too far apart leads to excessive sag, while closely spaced poles increase installation costs unnecessarily. Proper spacing between 30 and 50 meters ensures structural stability and efficiency.
Poor Grounding Practices
Insufficient grounding results in electrical hazards, including voltage surges and electrocution risks. Proper earthing at multiple points with resistance below 10 ohms ensures a safe and stable network.
Using Non-Insulated Connectors
Exposing conductors during jointing increases the risk of faults and electrocution. Always use pre-insulated connectors and appropriate crimping tools to ensure secure and insulated connections.
Ensuring the safety of installation workers is critical in ABC projects. Proper training and the use of protective equipment minimize risks during installation.
Personal Protective Equipment (PPE)
Workers must wear insulated gloves rated for the working voltage, dielectric boots to prevent grounding accidents, and arc flash-resistant clothing to reduce the risk of burns. Safety harnesses should be used when working at heights.
Safe Work Practices
Before handling live wires, de-energizing the circuit is mandatory. Insulated tools should be used, and a lockout/tagout (LOTO) system should be implemented to prevent accidental power restoration.
Workers should maintain a safe distance from live conductors and ensure all equipment is properly secured.
Emergency Preparedness
All personnel should be trained in first aid and CPR to respond to electrical accidents. Fire extinguishers and grounding rods should be readily available at the worksite.
An emergency response plan should be in place to address power-related incidents effectively.
Proper installation of Aerial Bundle Cables (ABC) is essential for ensuring electrical safety, system reliability, and long-term operational efficiency.
Unlike traditional bare conductors, ABC systems offer enhanced protection against electrical faults, weather conditions, and unauthorized power tapping.
However, achieving these benefits requires strict adherence to industry standards and best practices.
A well-planned installation begins with thorough site assessment, correct pole spacing, and selection of appropriate cables and fittings.
The step-by-step process of stringing, tensioning, grounding, and securing ABC components must be executed with precision to prevent mechanical stress and electrical failures.
Post-installation safety checks, including load testing, insulation resistance measurement, and environmental inspections, help identify potential weaknesses and ensure compliance with safety regulations.
Avoiding common installation mistakes such as improper tensioning, poor grounding, and using non-insulated connectors minimizes the risk of power disruptions and costly repairs.
Equally important is prioritizing worker safety through the use of PPE, insulated tools, and emergency preparedness measures.
By following these safe installation techniques and guidelines, utilities and contractors can build a durable, efficient, and safe ABC network that enhances power distribution reliability while protecting both workers and consumers from electrical hazards.
