Aluminum Conductor Steel Reinforced (ACSR) conductors are integral components in overhead power transmission systems, providing the necessary strength and conductivity to efficiently deliver electricity across vast distances.
Comprising a steel core surrounded by layers of aluminum strands, ACSR conductors are favored for their durability and excellent performance.
However, with increasing global emphasis on sustainability and resource conservation, the recycling of ACSR conductors has emerged as a critical practice.
Recycling not only minimizes waste but also conserves energy and reduces the carbon footprint associated with manufacturing new materials.
In this blog post, we will explore the comprehensive recycling process for ACSR conductors, detailing each stage from collection to the production of new materials.
Additionally, we will examine the numerous benefits of recycling these conductors, highlighting its positive impact on the environment, economy, and the overall sustainability goals of industries worldwide.
Understanding the importance of ACSR conductor recycling is vital as we strive for a greener future and work toward minimizing our reliance on non-renewable resources.

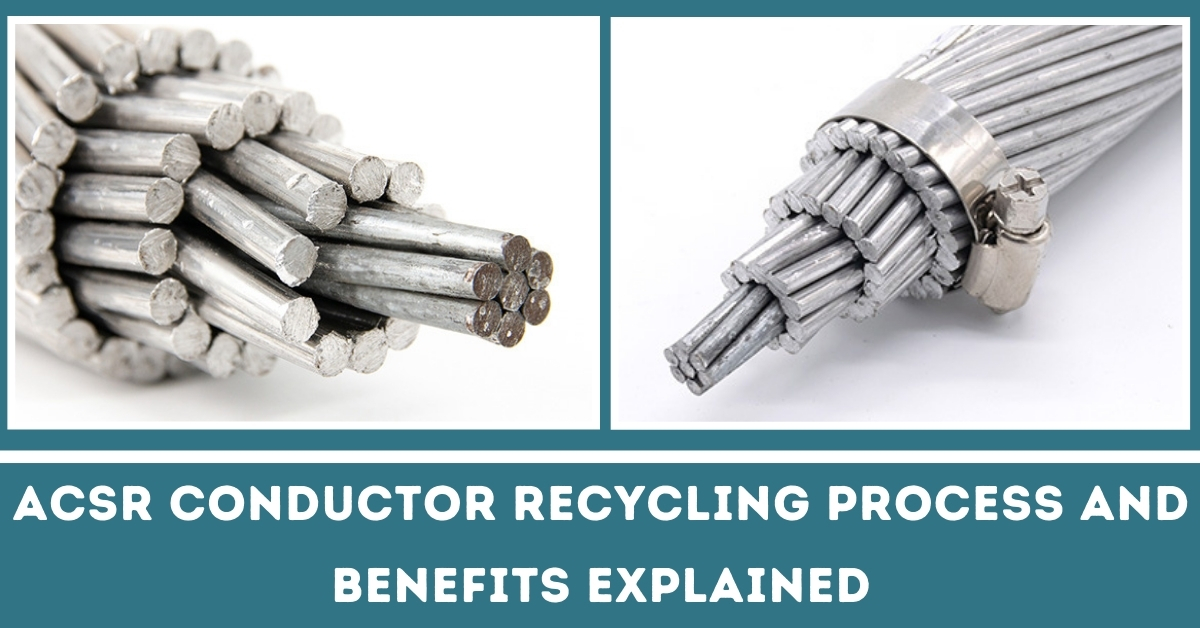

Before diving into the recycling process, it’s essential to understand what ACSR conductors are. An ACSR conductor consists of a core made of steel wires surrounded by layers of aluminum strands.
This design combines the tensile strength of steel with the conductivity of aluminum, making it ideal for transmitting electrical energy over long distances.
1. Composition : Typically, ACSR conductors consist of 6 to 54 aluminum strands and 1 to 6 steel wires. The steel core provides strength, while the aluminum ensures good conductivity.
2. Usage : ACSR conductors are primarily used in power transmission and distribution networks, making them crucial to the electrical infrastructure.
The production of ACSR conductors requires substantial energy and raw materials. Recycling offers a sustainable alternative that conserves resources and reduces environmental impact.
1. Recycling aluminum saves 95% of the energy needed to produce new aluminum from ore. Given that aluminum is a primary component of ACSR conductors, recycling significantly reduces energy consumption.
2. With increasing electrical infrastructure upgrades and replacements, large quantities of ACSR conductors become obsolete. Recycling helps manage this waste effectively.
Recycling ACSR (Aluminum Conductor Steel Reinforced) conductors is a multi-step process that aims to recover valuable materials while minimizing environmental impact.
This process involves collecting, sorting, stripping, shredding, separating, melting, refining, and ultimately producing new materials.
Each step plays a crucial role in ensuring efficient recycling. Below is a detailed guide to each stage of the ACSR conductor recycling process.
The recycling process begins with the collection of ACSR conductors that are no longer in use. This stage is essential as it sets the foundation for the subsequent steps.
Collection Methods
1. Many utility companies have programs in place for collecting old or damaged conductors. These companies often replace aging infrastructure and actively seek out conductors that can be recycled.
2. Recycling Centers : Dedicated recycling centers serve as drop-off points where individuals and businesses can bring scrap ACSR conductors. These centers often accept a wide range of metals, making them convenient for collectors.
3. Construction and Demolition Sites : As ACSR conductors are often used in construction and power line upgrades, sites undergoing demolition or renovation can be a source of recyclable material.
Proper collection is crucial as it ensures a steady supply of ACSR conductors for recycling. The more efficient the collection, the more materials can be processed, which ultimately benefits the recycling ecosystem.
Once collected, the ACSR conductors must be sorted to separate them from other materials. Sorting is essential for ensuring that only suitable materials are processed in the subsequent steps.
Sorting Techniques
1. Manual Sorting : Workers manually inspect and sort ACSR conductors, identifying and separating them from other types of metals or non-metal materials. This method relies on human judgment and expertise.
2. Automated Sorting : Some facilities utilize advanced machinery to assist in sorting. For instance, machines equipped with sensors can identify specific materials based on their properties and separate them accordingly.
Effective sorting is vital because it minimizes contamination of materials. Properly sorted ACSR conductors lead to higher quality recycling outputs, ensuring that both aluminum and steel can be effectively recovered and reused.
Stripping involves removing the aluminum layers from the steel core of the ACSR conductors. This step is necessary to separate the two materials for individual processing.
Stripping Methods
1. Mechanical Stripping : This method uses specialized machines that grip and pull apart the aluminum from the steel core. The process is efficient and ensures a clean separation of materials.
2. Thermal Stripping : In some cases, heat may be applied to loosen the bond between aluminum and steel, making it easier to strip the materials apart. However, this method must be used with caution to avoid damaging the metals.
3. Chemical Stripping : Although less common, chemicals can be employed to dissolve aluminum without harming the steel core. This method requires careful handling and environmental considerations.
Stripping is a critical step in the recycling process, as it ensures that aluminum and steel can be recycled separately. The quality of the stripping process directly influences the efficiency and profitability of the recycling operation.
After stripping, the separated aluminum and steel materials are shredded into smaller pieces. Shredding facilitates further processing and ensures uniformity.
Shredding Process
1. Size Reduction : Shredders equipped with rotating blades break down the stripped materials into smaller fragments. This size reduction makes handling and processing easier.
2. Homogenization : Shredding helps create a more uniform material mix, which is crucial for subsequent separation and melting processes. A consistent material size promotes efficient melting and refining.
Shredding not only prepares the materials for easier handling but also enhances the efficiency of the recycling process. Smaller fragments allow for quicker processing times and improved material recovery rates.
Once the materials are shredded, the next step is to separate the aluminum from the steel. This separation is vital to ensure that each material can be processed individually.
Separation Techniques
Density Separation : This method uses the principle of density to separate materials. In a water bath or air stream, lighter aluminum will float while heavier steel sinks, allowing for effective separation.
Eddy Current Separation : This technique employs electromagnetic induction to create eddy currents in non-ferrous metals (like aluminum), which then repel away from the main material stream. This is an effective way to isolate aluminum from mixed materials.
Magnetic Separation : Steel can be separated from aluminum using magnets. Since steel is magnetic, it can easily be pulled away from non-magnetic aluminum pieces.
Effective separation is crucial for maximizing material recovery. The better the separation process, the higher the quality of the recycled materials, which can be sold or used in new products.
After the aluminum and steel have been successfully separated, each material undergoes melting and refining. This stage prepares the materials for their next life in new products.
Melting Process
1. Aluminum Melting : The shredded aluminum is melted in a furnace. This process typically occurs at lower temperatures than smelting new aluminum from ore, saving energy and resources.
2. Steel Melting : The steel is also melted, often in an electric arc furnace, which allows for precise temperature control and purity. This is essential for producing high-quality steel products.
Refining Process
1. Purification : During melting, impurities are removed from both aluminum and steel. This ensures that the final product meets industry standards for quality and composition.
2. Alloying : In the case of aluminum, specific alloys may be added to enhance properties, depending on the intended application of the recycled aluminum.
The melting and refining stages are essential for ensuring the quality of the recycled materials. High-quality inputs lead to better end products, which are more valuable in the market.
The final stage of the recycling process is the production of new materials from the melted and refined aluminum and steel. This step marks the completion of the recycling loop.
New Material Production
Aluminum Products : The recycled aluminum can be cast into ingots, which can then be used to manufacture new ACSR conductors, automotive parts, packaging, and a wide range of other products.
Steel Products : Recycled steel can be used to produce new steel products for construction, automotive, and manufacturing industries.
Producing new materials from recycled ACSR conductors closes the recycling loop, demonstrating the value of recycling in conserving resources and reducing waste. The market demand for recycled materials continues to grow, further incentivizing the recycling process.
Recycling ACSR conductors offers a variety of benefits that contribute to environmental sustainability, economic growth, and energy conservation. Here are the primary advantages:
One of the most significant benefits of recycling ACSR conductors is the substantial energy savings it provides. The process of recycling aluminum requires only about 5% of the energy needed to produce new aluminum from raw materials.
This drastic reduction in energy consumption results in a lower overall carbon footprint for industries that utilize recycled aluminum.
By conserving energy, recycling reduces greenhouse gas emissions, which is crucial for combating climate change and its associated effects on the environment.
The recycling of ACSR conductors can lead to significant economic advantages. The recycling industry creates jobs in various sectors, including collection, processing, and distribution.
According to the Institute of Scrap Recycling Industries (ISRI), the recycling sector contributes significantly to local and national economies, employing over 1.1 million people in the United States alone.
Additionally, recycling reduces costs for manufacturers who can source materials at lower prices compared to virgin materials.
This not only enhances profit margins but also stimulates market demand for recycled products, creating a positive feedback loop for the economy.
Recycling ACSR conductors is essential for protecting the environment. By diverting waste from landfills, recycling reduces the strain on these facilities and minimizes land degradation.
Metals can take hundreds of years to decompose, and recycling helps manage this waste effectively. Furthermore, the process conserves natural resources by decreasing the need for mining new materials.
Mining operations can lead to habitat destruction, soil erosion, and water pollution; therefore, recycling helps preserve ecosystems and biodiversity.
In today’s world, sustainability has become a priority for businesses and governments alike. Recycling ACSR conductors supports these sustainability initiatives by contributing to a circular economy.
In a circular economy, materials are continuously reused and recycled, reducing waste and promoting resource efficiency.
Companies that adopt recycling practices can enhance their corporate social responsibility profiles, attracting environmentally conscious consumers and investors.
As businesses work toward sustainability targets, recycling ACSR conductors plays a critical role in achieving these objectives.
Finally, the use of recycled materials in manufacturing processes can lead to greater efficiency. Recycled aluminum and steel are often less expensive than virgin materials, which can lower overall production costs for manufacturers.
Additionally, using recycled inputs can improve the quality of finished products due to the consistent composition achieved through recycling processes.
This reliability in quality can enhance product performance and increase customer satisfaction, making recycling an appealing option for manufacturers in the electrical and construction sectors.
