ACSR Cable Main Testing Methods to Ensure Quality

2025-03-22

Aluminum Conductor Steel Reinforced (ACSR) cables play a crucial role in power transmission networks, offering high mechanical strength and efficient electrical conductivity.

These cables are widely used in overhead power lines due to their durability and ability to withstand extreme environmental conditions.

However, ensuring their quality is not just a regulatory requirement it’s a necessity for maintaining reliable power supply, preventing failures, and avoiding costly maintenance.

Without proper quality control, ACSR cables can suffer from mechanical failure, electrical inefficiency, or premature corrosion, leading to unexpected breakdowns and power outages.

Factors like poor material composition, inadequate tensile strength, or high electrical resistance can compromise the performance of these cables.

To mitigate these risks, various testing methods are employed throughout the manufacturing and operational phases.

From mechanical and electrical assessments to material and environmental tests, each evaluation ensures that ACSR cables meet industry standards and perform efficiently in real-world conditions.

ACSR Cable Main Testing Methods to Ensure Quality

In this guide, we will explain the main testing methods used to verify ACSR cable quality, their importance, and real-world case studies demonstrating why rigorous testing is essential.

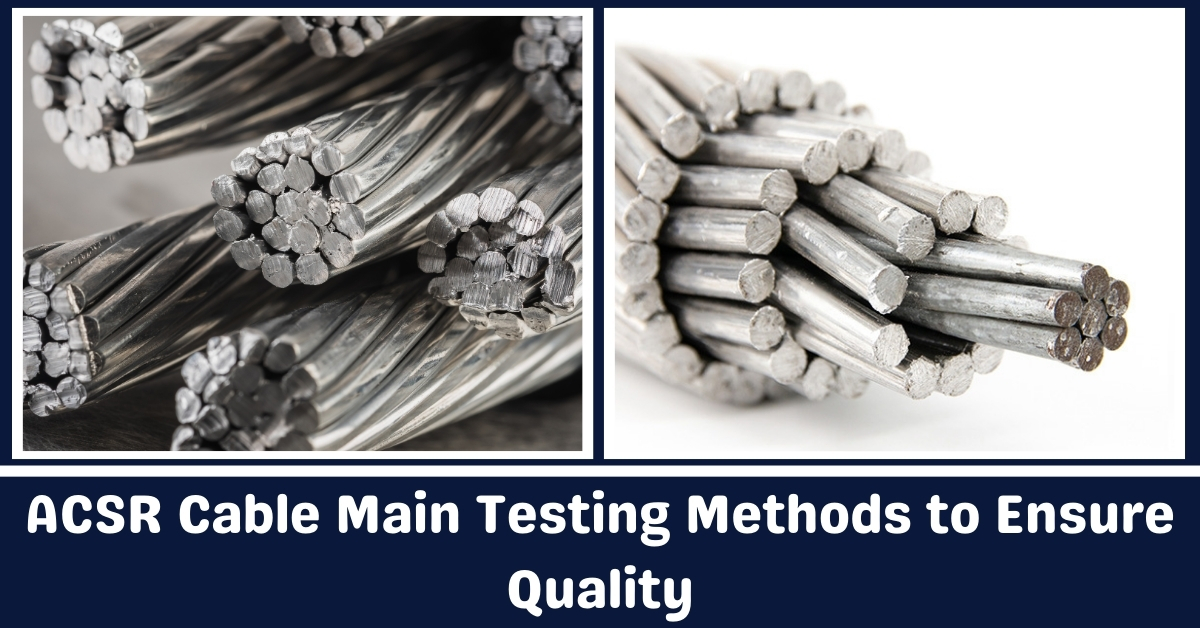

ACSR Cable Main Testing Method to Ensure Quality

1. Why ACSR Cable Testing Matters

ACSR cables must meet strict quality standards to function efficiently and safely over long periods.

Without proper testing, cables may experience mechanical failure, electrical inefficiency, or environmental degradation, leading to costly repairs and power disruptions.

Testing helps ensure compliance with industry regulations, guarantees structural integrity, and identifies defects before they cause operational issues.

Power transmission companies rely on thorough testing to verify cable strength, electrical conductivity, material composition, and resistance to environmental factors.

Additionally, periodic on-site inspections help maintain system reliability by identifying wear and potential weak points before they lead to critical failures.

By implementing rigorous quality checks, ACSR cables can deliver consistent performance in challenging conditions.

2. Mechanical Testing

Mechanical testing ensures that ACSR cables can withstand the physical stresses encountered during transportation, installation, and operation.

These tests evaluate tensile strength, flexibility, and durability to prevent mechanical failure.

Tensile strength test measures the maximum load a cable can handle before breaking. Since ACSR cables are often used in long spans, they must support their own weight while resisting external forces like wind and ice. A properly tested cable will maintain structural integrity even under high tension.

Elongation test determines how much the aluminum and steel components stretch under stress. ACSR cables must have enough elasticity to accommodate mechanical movement without becoming brittle or breaking. This test ensures that cables can expand and contract within safe limits.

Torsion test checks the cable’s ability to withstand twisting forces. During installation and maintenance, ACSR cables are subjected to bending and twisting, which can weaken untested cables over time. The torsion test ensures that both aluminum and steel components maintain their integrity under repeated twisting motions.

Bending test evaluates how well an ACSR cable can handle repeated bending cycles. Since cables are often routed around obstacles or installed in dynamic environments, they must withstand continuous bending without cracking or losing conductivity. This test helps confirm long-term mechanical durability.

Impact test measures a cable’s resistance to sudden mechanical shocks, such as accidental drops or external force impacts. This test is important for assessing the cable’s ability to withstand harsh conditions without internal damage.

3. Electrical Testing

Electrical testing verifies the conductivity, insulation, and overall electrical performance of ACSR cables.

Ensuring low resistance and efficient power transmission is crucial for maintaining stable power distribution.

DC resistance test measures how much electrical resistance the aluminum conductor offers to current flow. A high resistance value indicates impurities in the aluminum or inconsistent manufacturing, which can lead to energy loss and overheating. This test ensures that the cable maintains optimal conductivity over long distances.

High voltage test evaluates the insulation’s ability to withstand extreme voltages without breaking down. ACSR cables are exposed to electrical surges, and this test ensures that they can handle temporary voltage spikes without failure. Proper insulation prevents short circuits and enhances cable reliability.

Corona discharge test detects unwanted electrical discharges in high-voltage cables. Poor-quality insulation or air gaps in the cable structure can cause corona discharge, leading to energy loss and long-term insulation damage. This test identifies weak points in the cable before they develop into critical failures.

Impulse voltage test subjects the cable to simulated lightning strikes or switching surges. ACSR cables in power transmission networks must withstand unexpected voltage spikes, and this test verifies their ability to handle real-world electrical disturbances.

Partial discharge test detects tiny electrical discharges within the insulation. Over time, small defects in the insulation can grow into larger faults, leading to breakdowns. This test helps identify potential failure points before they become serious issues.

4. Material Testing

Material testing ensures that the aluminum and steel components of ACSR cables meet industry standards for purity, composition, and durability. The quality of raw materials directly affects the cable’s performance and lifespan.

Chemical composition analysis verifies that the aluminum and steel components contain the correct proportions of elements. Impurities or incorrect alloy compositions can reduce conductivity and mechanical strength, leading to premature cable failure.

Coating adhesion test evaluates how well the protective zinc coating adheres to the steel core. Since the steel core is coated to prevent corrosion, poor adhesion can result in coating separation, exposing the steel to rust. This test ensures long-term corrosion resistance.

Hardness test measures the resistance of the aluminum and steel components to deformation. ACSR cables must be strong enough to handle mechanical stresses without becoming too brittle or too soft. This test confirms that the materials have the necessary hardness levels for durability.

Microstructure analysis examines the internal structure of the aluminum and steel using a microscope. This test identifies inconsistencies in material processing that could weaken the cable. Uniform grain structures ensure consistent mechanical and electrical performance.

Corrosion resistance test subjects the steel core to accelerated corrosion conditions to determine its longevity in harsh environments. Since ACSR cables are often exposed to moisture and pollutants, this test ensures that the steel core remains intact over time.

5. Environmental Testing

ACSR cables are exposed to extreme environmental conditions, including temperature fluctuations, humidity, salt exposure, and UV radiation.

Environmental testing simulates these conditions to verify long-term cable durability.

Thermal cycling test subjects the cable to repeated heating and cooling cycles. Temperature fluctuations cause expansion and contraction, which can weaken materials over time. This test ensures that the cable maintains its integrity under varying temperatures.

Salt spray test simulates coastal or industrial environments where cables are exposed to salty air. High salt content can accelerate corrosion, especially in the steel core. This test evaluates how well the cable withstands such conditions.

UV resistance test assesses the effect of prolonged sunlight exposure on the cable’s outer layers. Overhead cables are continuously exposed to UV radiation, which can degrade insulation and outer sheathing. This test ensures that materials remain stable over long periods.

Moisture absorption test measures how much moisture the cable materials absorb over time. Excessive moisture can lead to insulation failure and corrosion. This test verifies that the materials used in ACSR cables resist water absorption effectively.

Cold bend test evaluates how well the cable performs in low-temperature conditions. In regions with freezing temperatures, cables must remain flexible and durable. This test ensures that the cable does not crack or lose mechanical integrity in extreme cold.

6. Routine Inspection and On-Site Testing

Even after installation, ACSR cables require regular inspections to detect signs of wear, damage, or performance degradation.

On-site testing ensures that cables continue to operate efficiently throughout their service life.

Infrared thermography is used to detect overheating in cables. Anomalies in temperature distribution can indicate high resistance points, which may be caused by poor connections or damaged conductors. Identifying these issues early helps prevent failures.

Partial discharge monitoring detects small electrical discharges within the cable insulation. Over time, these discharges can lead to insulation breakdowns, making early detection essential for preventive maintenance.

Visual inspections are conducted to check for physical damage, corrosion, or wear. Using drones and high-resolution cameras, maintenance teams can assess cables in hard-to-reach locations without shutting down power lines.

Mechanical stress testing evaluates how well the installed cable withstands real-world mechanical forces, such as wind pressure, ice loading, and vibrations from passing vehicles. This test helps identify weak spots that may require reinforcement.

Live-line testing allows for cable assessment without interrupting power transmission. Specialized equipment is used to measure electrical performance and insulation integrity while the cable remains in operation.

Conclusion

Ensuring the quality of ACSR cables through rigorous testing is essential for maintaining a reliable power transmission network.

These cables are exposed to various mechanical stresses, electrical loads, and environmental conditions, making thorough evaluation necessary at every stage from manufacturing to installation and long-term operation.

Mechanical testing verifies tensile strength, flexibility, and impact resistance, ensuring the cable can withstand physical stresses.

Electrical testing confirms optimal conductivity, insulation integrity, and resistance to voltage fluctuations.

Material testing guarantees the purity and durability of aluminum and steel components, while environmental testing ensures resilience against temperature changes, moisture, corrosion, and UV exposure.

Routine inspections and on-site testing further help detect performance degradation, potential faults, and mechanical wear, allowing for proactive maintenance and minimizing failures.

By implementing these comprehensive testing methods, manufacturers and power companies can prevent unexpected breakdowns, reduce maintenance costs, and extend the service life of ACSR cables.

Quality assurance in ACSR cables not only enhances efficiency and safety but also ensures uninterrupted power transmission in demanding real-world conditions.
