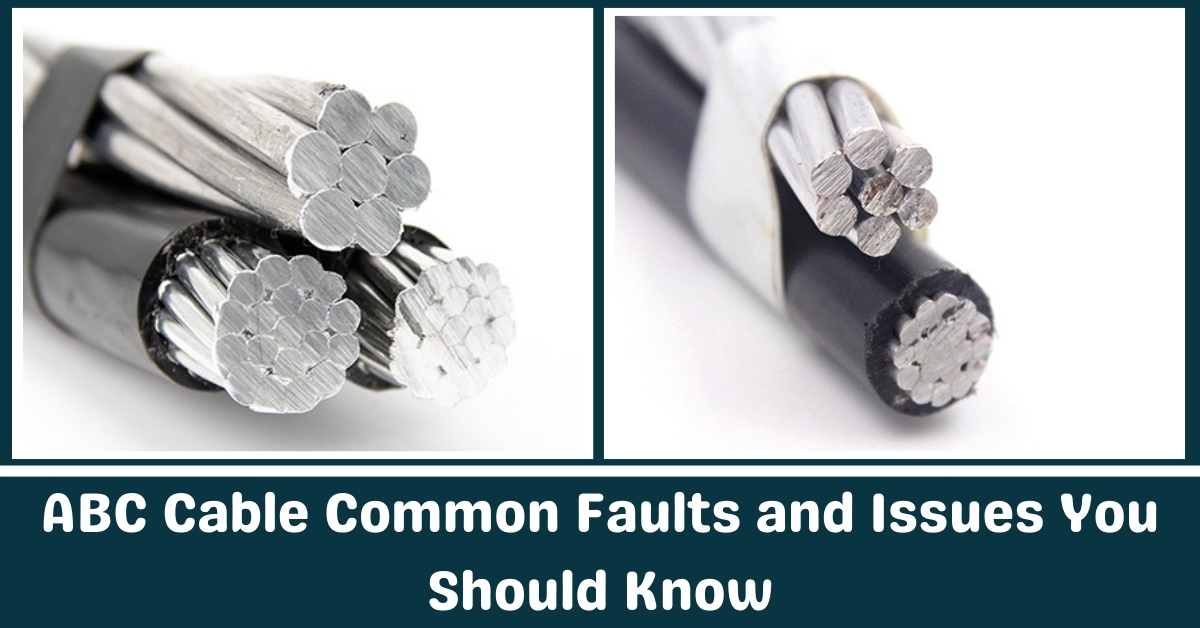

ABC (Aerial Bundled Cable) is widely used in overhead electrical distribution systems due to its reliability and efficiency in power transmission.
Unlike traditional overhead cables, ABC cables are designed with bundled conductors, which significantly reduce the risk of short circuits caused by external factors like weather or physical damage.
However, despite their advantages, ABC cables are not immune to faults and issues. Over time, these cables can face a range of challenges that can impact their performance, safety, and longevity.
Common problems such as overheating, insulation breakdown, physical damage from environmental factors, and faulty connections are just a few of the issues that can arise.
These faults can lead to power outages, system failures, or even safety hazards like fires.
Understanding these issues and knowing how to prevent or address them is crucial for anyone involved in the installation, maintenance, or operation of electrical systems using ABC cables.
In this guide, we will discuss the most common faults and issues associated with ABC cables and provide practical solutions to keep your electrical systems running smoothly and safely.
One of the most common issues with ABC cables is overheating, which typically occurs when the cable is subjected to excessive current.
ABC cables are designed to carry a specific amount of electrical load, and when this load exceeds the rated capacity, it can lead to overheating.
Overheating can damage the insulation, degrade the conductor, and even cause a fire hazard in extreme cases.
Why Does It Happen? ABC cables are designed to handle a certain amount of electrical load. When they are overloaded, the cables will heat up due to the increased resistance.
This can be caused by multiple factors, including faulty equipment or improper installation.
How to Prevent It? To prevent overheating, always ensure that ABC cables are properly sized for the load they are intended to carry. Regular maintenance and inspections of the electrical system can help identify potential overloads.
If the load increases significantly, consider upgrading to a higher-rated cable or installing load management systems to distribute the current more evenly.
ABC cables are typically installed overhead, making them more susceptible to physical damage caused by environmental factors such as wind, rain, falling trees, and even animal interference.
Over time, exposure to the elements can weaken the insulation, leading to faults and failures.
Why Does It Happen? Environmental factors, particularly severe weather conditions, can physically damage ABC cables.
For example, high winds can cause cables to swing and potentially rub against tree branches or other obstacles. Rain can cause water to seep into the insulation, causing corrosion or short circuits.
How to Prevent It? To minimize the risk of physical damage, ensure that ABC cables are installed with sufficient clearance from trees, buildings, and other obstacles.
Consider using reinforced cables designed for harsh environments or installing protective barriers where necessary. Regular inspections are also essential to spot potential damage before it leads to more serious issues.
Insulation breakdown is another common issue with ABC cables. Over time, the insulation that protects the conductors from external factors can degrade, leading to short circuits and power outages.
Insulation breakdown can be caused by several factors, including aging, physical damage, UV radiation from the sun, and contact with chemicals.
Why Does It Happen? The insulation material used in ABC cables is designed to protect the conductors from external damage, moisture, and electrical shorts.
However, over time, exposure to environmental conditions can cause the insulation to break down. Aging, UV rays, and physical stress all contribute to this process, causing cracks or thinning of the insulation.
How to Prevent It? To prevent insulation breakdown, regular inspections and maintenance are essential. If the cable shows signs of wear and tear or if the insulation appears cracked or brittle, it should be replaced immediately.
Additionally, consider using cables with better-quality insulation materials or cables that are specifically designed for outdoor use, where they are exposed to harsher conditions.
Terminations and connections are critical components of any cable system. If they are not properly installed or maintained, they can lead to faults in the cable.
With ABC cables, improper terminations or loose connections can result in poor electrical contact, which leads to heating, arcing, or even complete cable failure.
Why Does It Happen? Faulty terminations and connections are often the result of poor installation practices or the use of substandard connectors.
Over time, connections can loosen, corrode, or wear out, leading to electrical faults. Improperly terminated cables may also create weak points in the system, leading to failure.
How to Prevent It? To avoid faulty terminations, always ensure that the correct connectors and termination methods are used. Use high-quality connectors designed for the specific type of cable.
Regularly inspect connections for signs of corrosion or loosening, and re-tighten or replace any faulty connectors.
Proper installation practices and attention to detail can go a long way in preventing this issue.
Water infiltration is another common problem with ABC cables. While ABC cables are designed to withstand some exposure to moisture, prolonged exposure to water can cause damage to the cable’s insulation and lead to electrical faults.
Water can seep into the cable through small cracks or damaged insulation, causing short circuits and power disruptions.
Why Does It Happen? Water infiltration often occurs when the cable’s insulation is compromised or when the cable is improperly installed in areas where it is prone to water exposure.
Poor drainage or excessive moisture can accelerate the process, leading to corrosion or short circuits.
How to Prevent It? Proper cable installation is crucial to prevent water infiltration. Ensure that the cables are installed in a manner that allows for adequate drainage and that they are not exposed to standing water.
Inspect the insulation regularly and replace cables that show signs of wear. Consider using water-resistant or waterproof cables, especially in areas prone to heavy rainfall or flooding.
Electrical short circuits are one of the most dangerous issues that can occur with ABC cables. A short circuit happens when the electrical current takes an unintended path, often due to faulty wiring, damaged insulation, or a poor connection.
This can cause overheating, fire hazards, and electrical outages.
Why Does It Happen? Short circuits in ABC cables are typically caused by a breakdown in the insulation, loose connections, or physical damage to the cables.
When the conductors come into contact with each other or with other conductive materials, a short circuit occurs.
How to Prevent It? To prevent short circuits, regularly inspect cables for signs of damage and ensure all connections are secure. If the insulation is damaged or the cable is physically compromised, replace it immediately.
Use circuit breakers and fuses to protect against short circuits, and ensure that they are properly rated for the electrical load.
While it may sound odd, rodent damage is a significant issue for ABC cables, especially in rural areas.
Rodents, such as squirrels and rats, are known to chew on cables, including ABC cables, causing damage to the insulation and potentially leading to electrical faults.
Why Does It Happen? Rodents are naturally inclined to chew on cables to maintain their teeth. If ABC cables are installed in areas prone to rodent activity, they can become targets for chewing. Over time, this can cause severe damage to the cable, leading to power interruptions.
How to Prevent It? To prevent rodent damage, install rodent-resistant cables or use protective coverings around the cables. Regular inspections can help detect early signs of rodent damage, such as visible chew marks.
If rodent activity is high in the area, consider taking additional measures, such as setting traps or using deterrents.
Corrosion is another issue that can affect ABC cables, especially when exposed to environmental factors like moisture, salt, and pollution.
Over time, the metal conductors and connectors in the cable can begin to corrode, leading to poor electrical performance and even total cable failure.
Why Does It Happen? Corrosion typically occurs due to exposure to moisture and chemicals in the environment. Saltwater, in particular, is highly corrosive and can cause significant damage to the metal components of ABC cables.
How to Prevent It? To prevent corrosion, ensure that cables are installed in locations where they are not exposed to excessive moisture or corrosive substances.
Use corrosion-resistant materials, such as tinned copper or aluminum, and consider coating the cables with anti-corrosion substances.
ABC cables play a vital role in modern overhead power distribution, offering several advantages over traditional bare conductor systems such as improved safety, reduced maintenance, and enhanced durability in various environmental conditions.
However, as we’ve explored throughout this guide, they are not without their challenges. Common issues such as overheating due to overloading, insulation breakdown, water infiltration, physical damage, and faulty terminations can compromise performance and lead to serious operational risks.
These faults, if left unchecked, can result in electrical outages, equipment failure, or even dangerous situations like fires or electrocution.
The key to maximizing the reliability and lifespan of ABC cables lies in understanding these potential problems and implementing proactive measures.
Regular inspections, correct installation practices, timely repairs, and using quality materials are essential steps toward maintaining system integrity.
Whether you’re an installer, technician, or facility manager, staying informed about these common issues can help you make better decisions and avoid costly downtime.
By identifying and addressing these faults early, you not only extend the life of your ABC cables but also ensure consistent and safe power delivery.
Always remember prevention is more cost-effective than repair when it comes to electrical infrastructure.
